Fiber Cement Board--En12467 Curtain Wall Color-Though Cladding CE Marking

1 / 5

Fiber Cement Board--En12467 Curtain Wall Color-Though Cladding CE Marking

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Kimbeck External Facade

Material

Fiber Cement Board

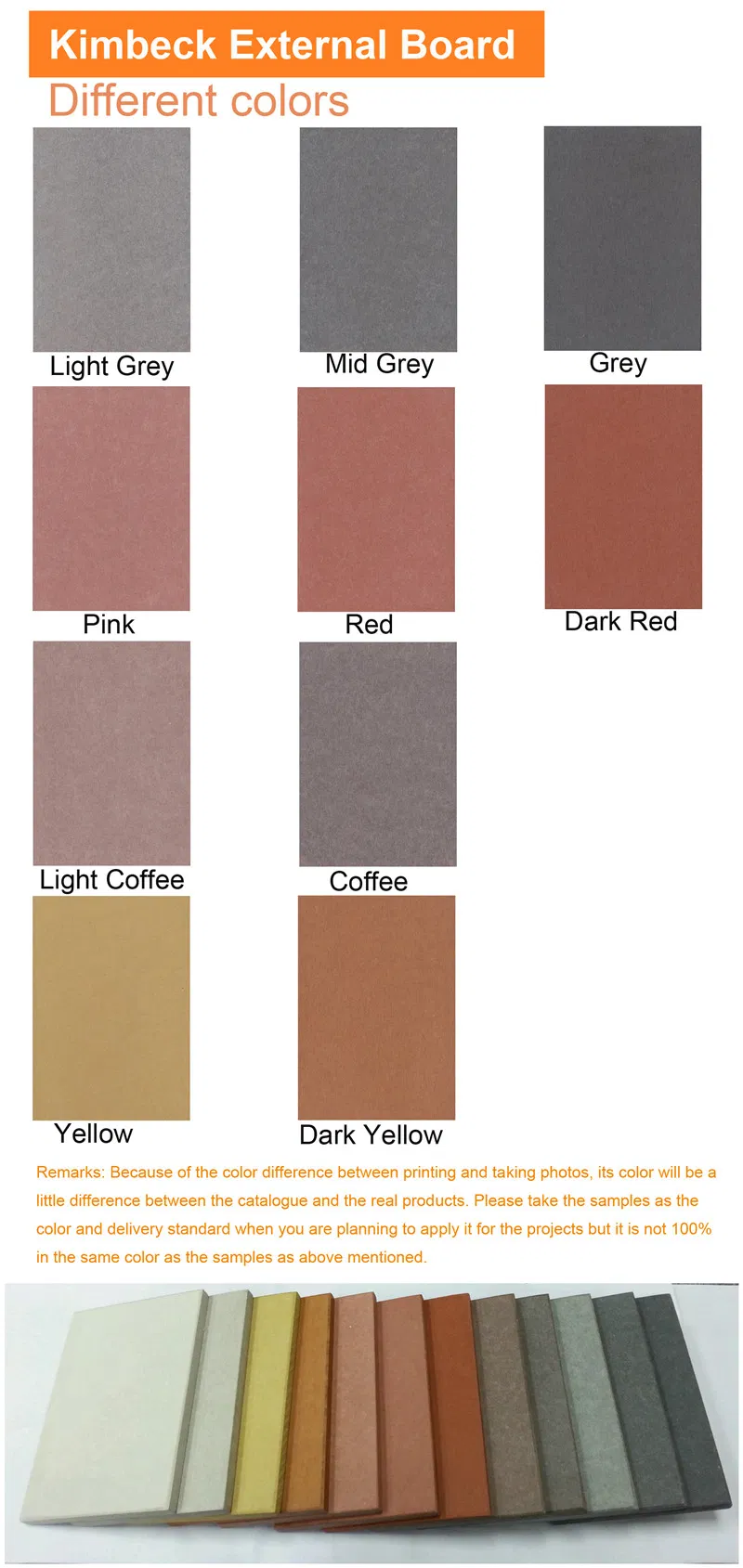

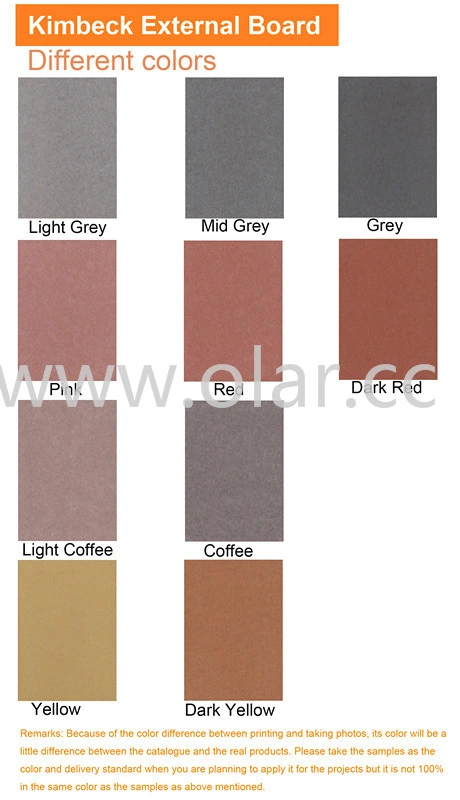

Color Options

Grey, Red, Yellow, Coffee, White, Offwhite, Blue...

Raw Material

Cellulose, Cement, Quartz(Sand), Silica, etc.

Surface Finish

Un-Sanded / Sanded / Polished

Key Features

Waterproof, Freezing-Thawing, Fireproof

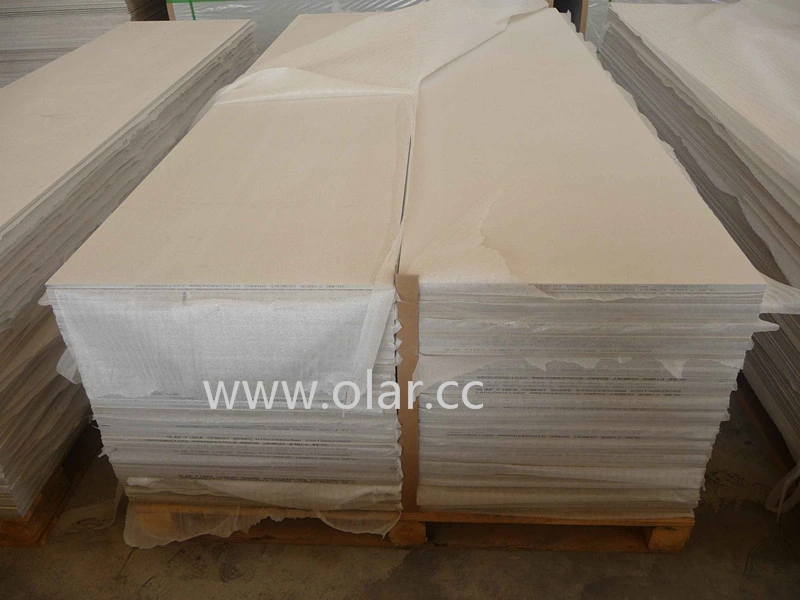

Transport Package

Wooden Pallets

Specification

BS EN12467: 2012, In-combustible Grade A1

Capacity

30,000sqm/Day

Package Size

244.00cm * 122.00cm * 76.00cm

Product Description

Why choose Kimbeck External Board for Curtain Walls?

It is a fiber reinforced cement board composited of Portland cement, sand, cellulose, natural pigment, waterproof, natural mineral substance, etc.

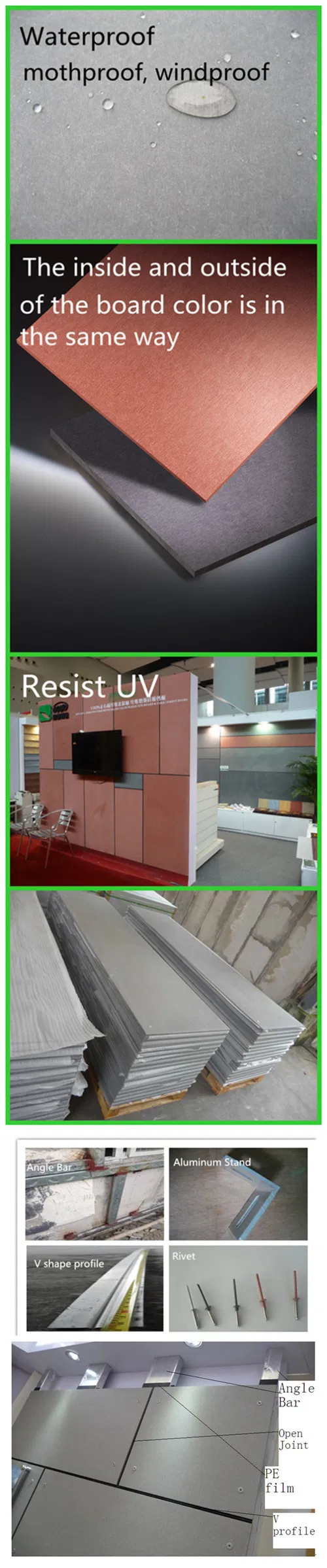

Main Characteristics

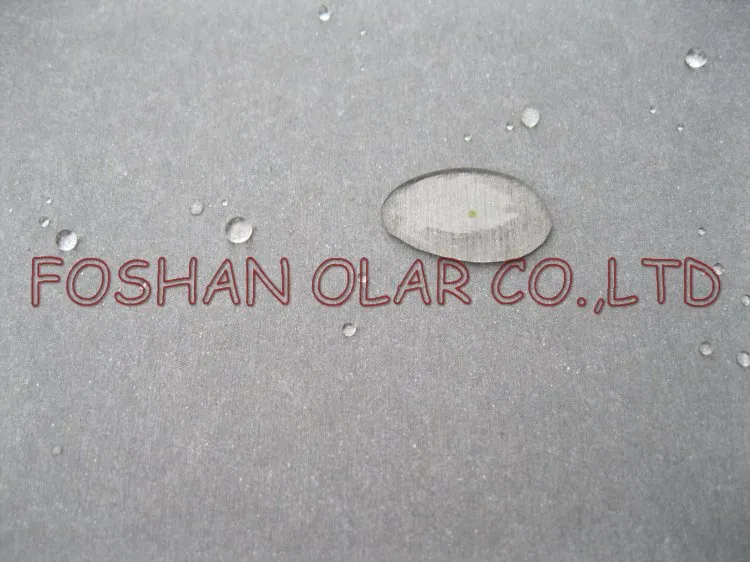

💧 Excellent waterproof treatment

🛡️ High anti-impact strength

🔥 Grade A1 In-combustibility

🌱 100% Non-Asbestos

⚡ Energy-saving & Weather resistance

🏗️ Long lifespan & High Bending Strength

Thermal Insulation: For Deepwond Siding, thermal insulation material like Rock Wool (density >80kg/m3) can be placed in the gap of the backside. Ensure a distance of >30mm between the panel back and insulation material.

Technical Data Sheet

Kimbeck External Board Properties
Standard Specification	122024409/12MM
Tolerance	Length/Width: ±3mm; Thickness: ±0.5mm
Appearance	Surface: Sanded; Edge: Square; Multiple colors available
Density	≥1400KG/M³
Bending Strength	Cross: 13~20MPa; Parallel: 8~12MPa
Water Absorption	≤30%
Thermal Conductivity	≤ 0.30w/(m@k)
Fire Rating	CE EN 12467:2012 Grade A1
Freeze-thaw	No cracking/layering after 25 cycles
Warranty	More than 20 years

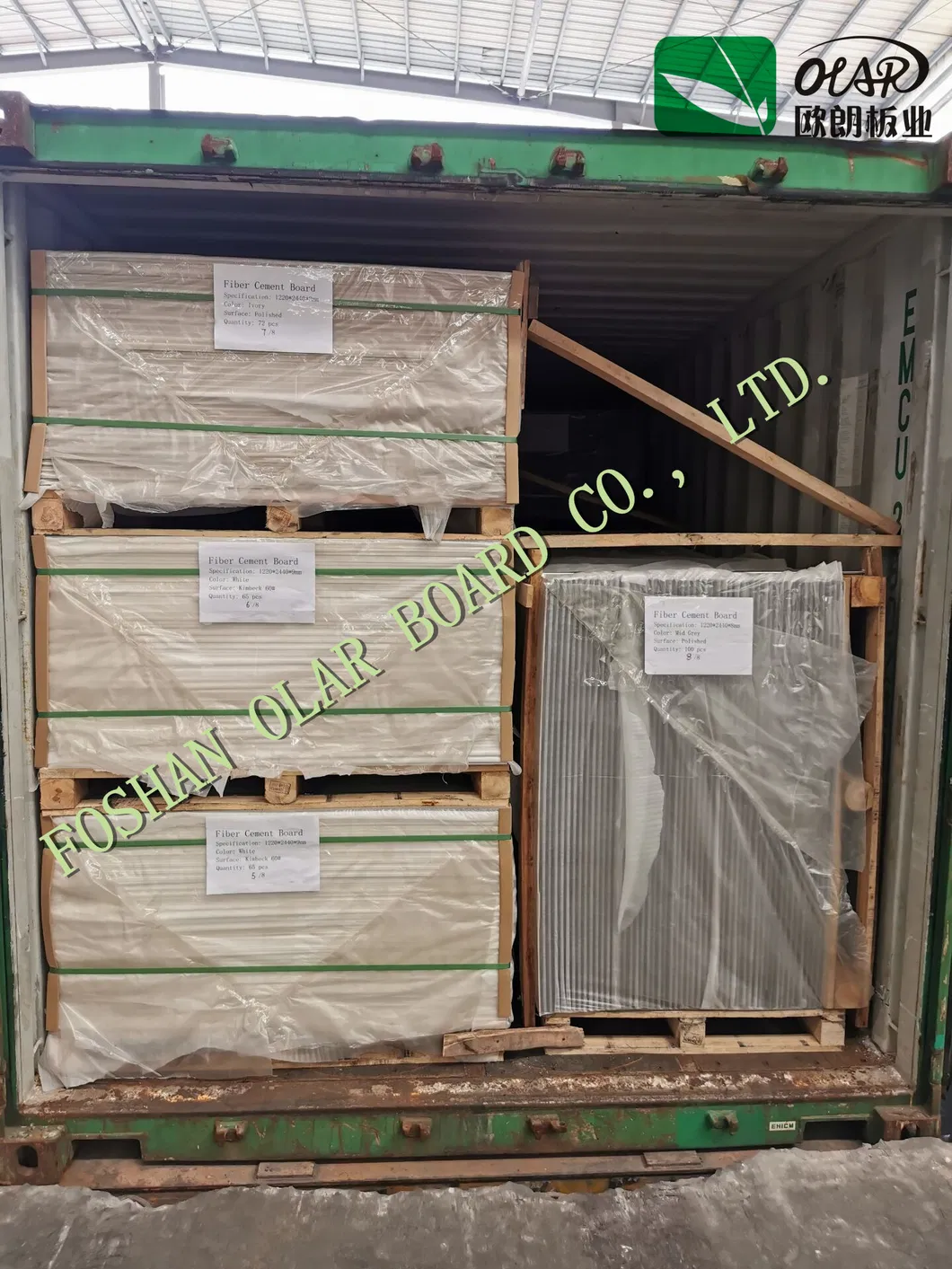

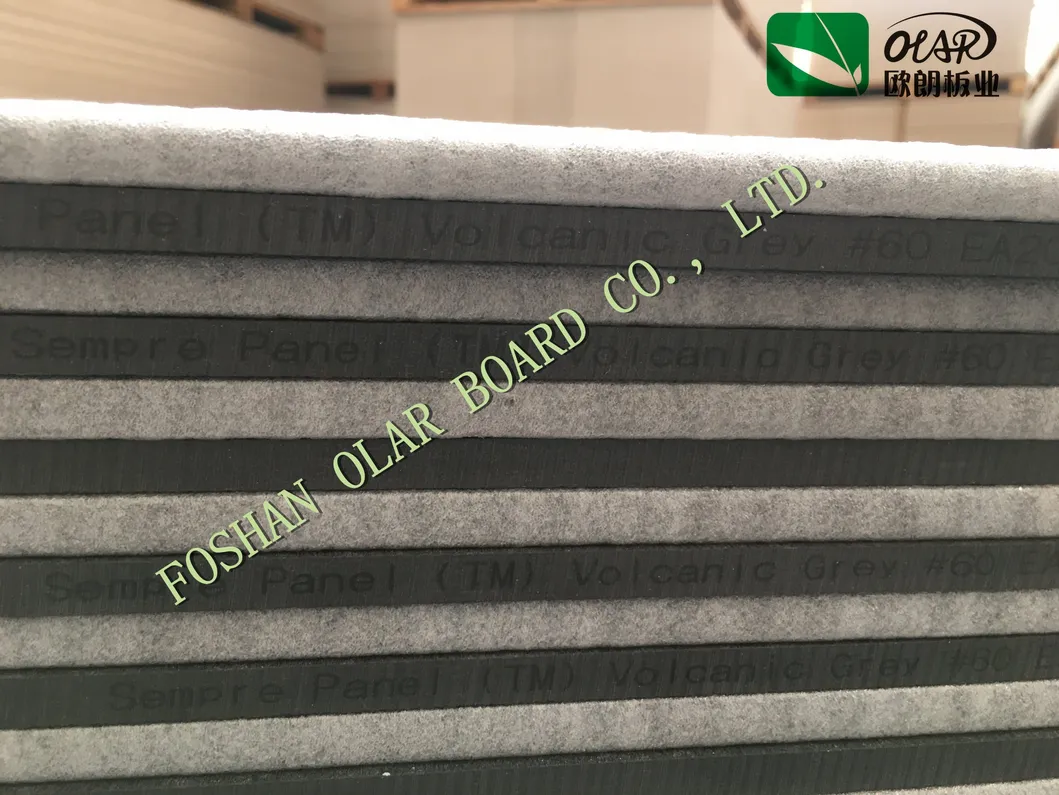

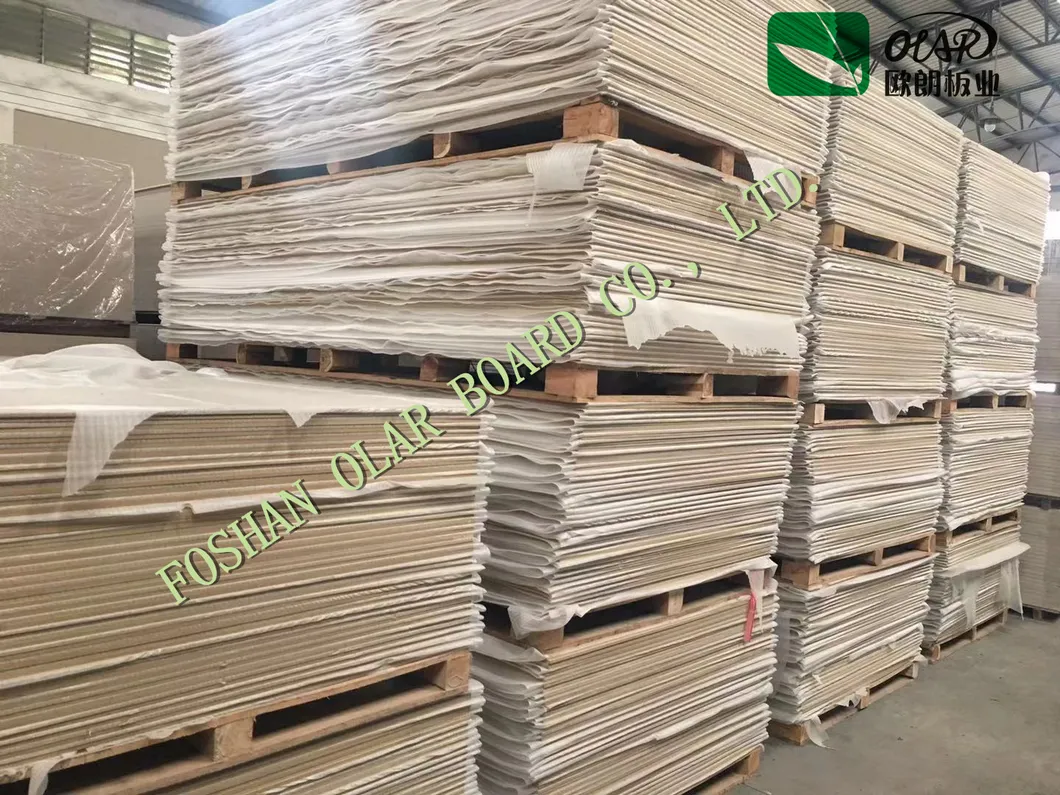

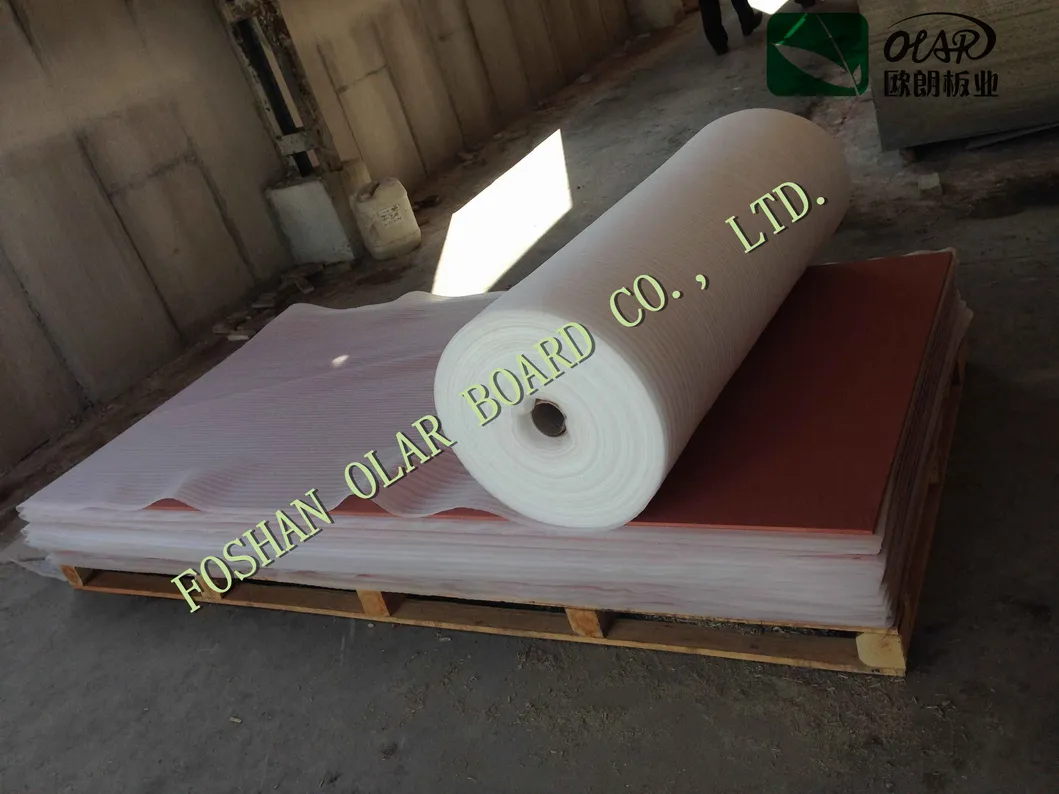

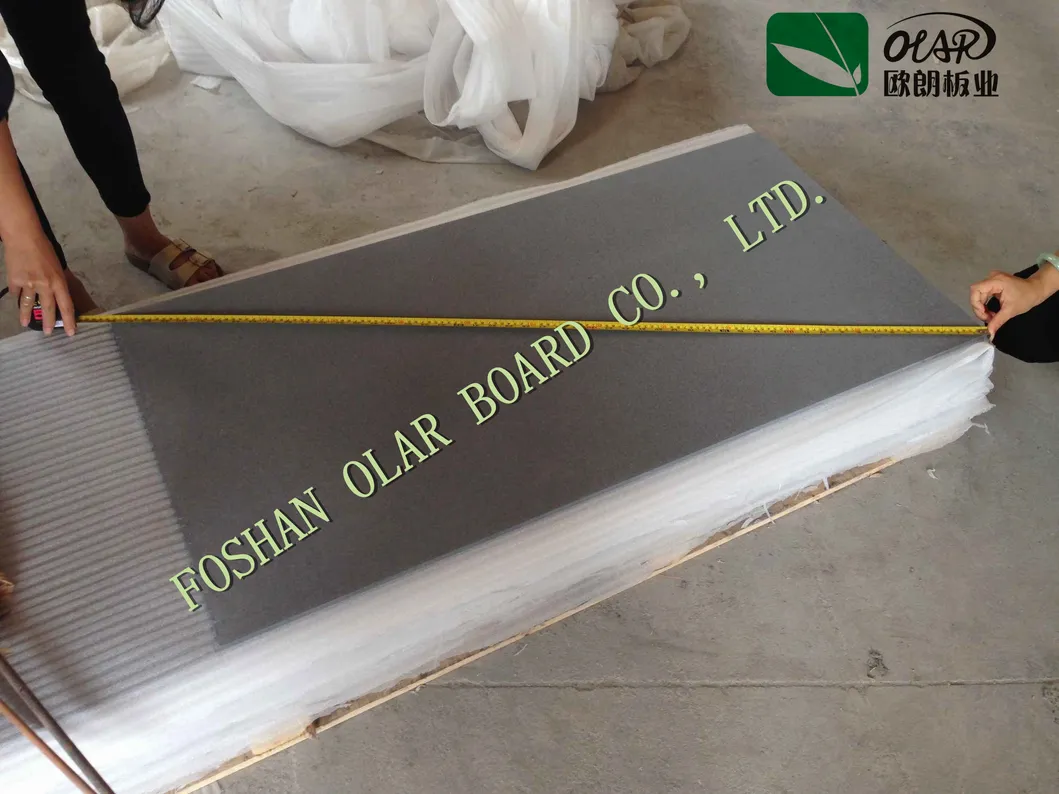

Quality Inspection & Packing

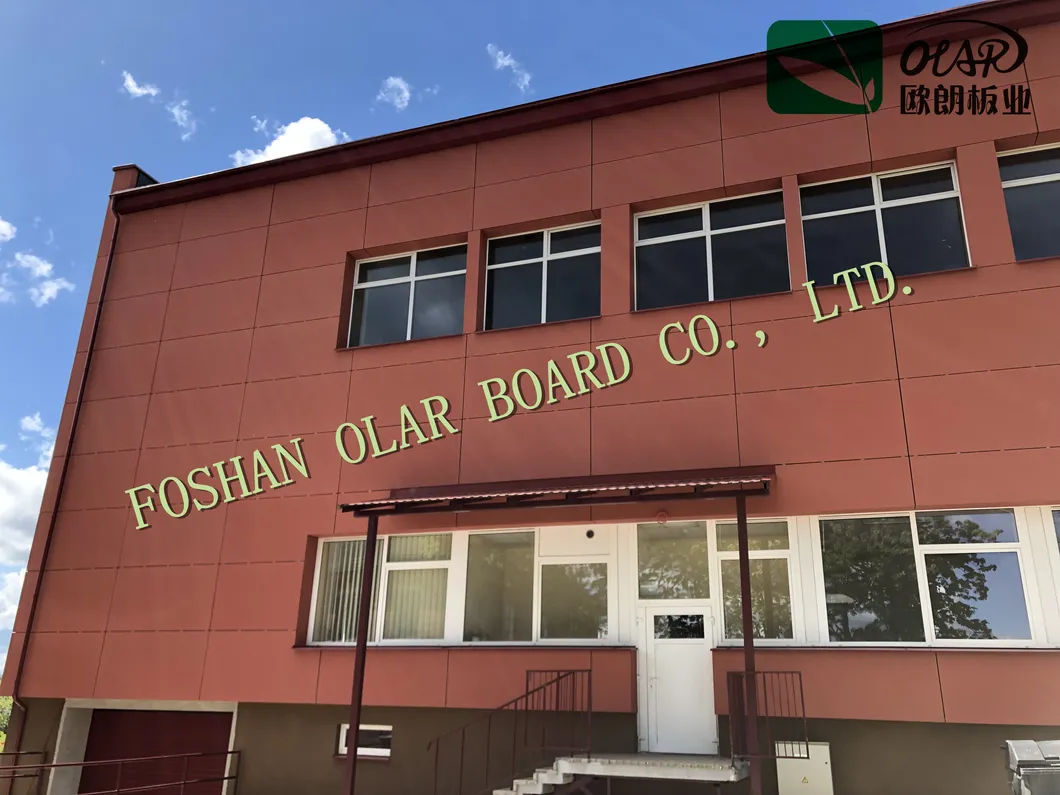

Global Projects Reference

Frequently Asked Questions

Q1: What is the main composition of Kimbeck External Board? It is a high-density fiber reinforced cement board made of Portland cement, sand, cellulose fibers, and natural mineral substances.

Q2: Is this board fireproof for high-rise buildings? Yes, it meets the BS EN12467: 2012 and Grade A1 In-combustibility standards, making it safe for external facades and cladding.

Q3: How does the board perform in wet or freezing conditions? The board features excellent waterproof treatment and passes freeze-thaw tests (25 cycles) without cracking or layering.

Q4: Does the board contain asbestos? No, the material is 100% Non-Asbestos, ensuring it is environmentally friendly and safe for construction.

Q5: What is the expected service life of these facade panels? Based on our product warranty and durability tests, the panels have a long service life of more than 20 years.

Q6: What colors and finishes are available? Standard colors include Grey, White, Off-white, Red, Yellow, and Coffee. Surfaces can be provided as un-sanded, sanded, or polished.
