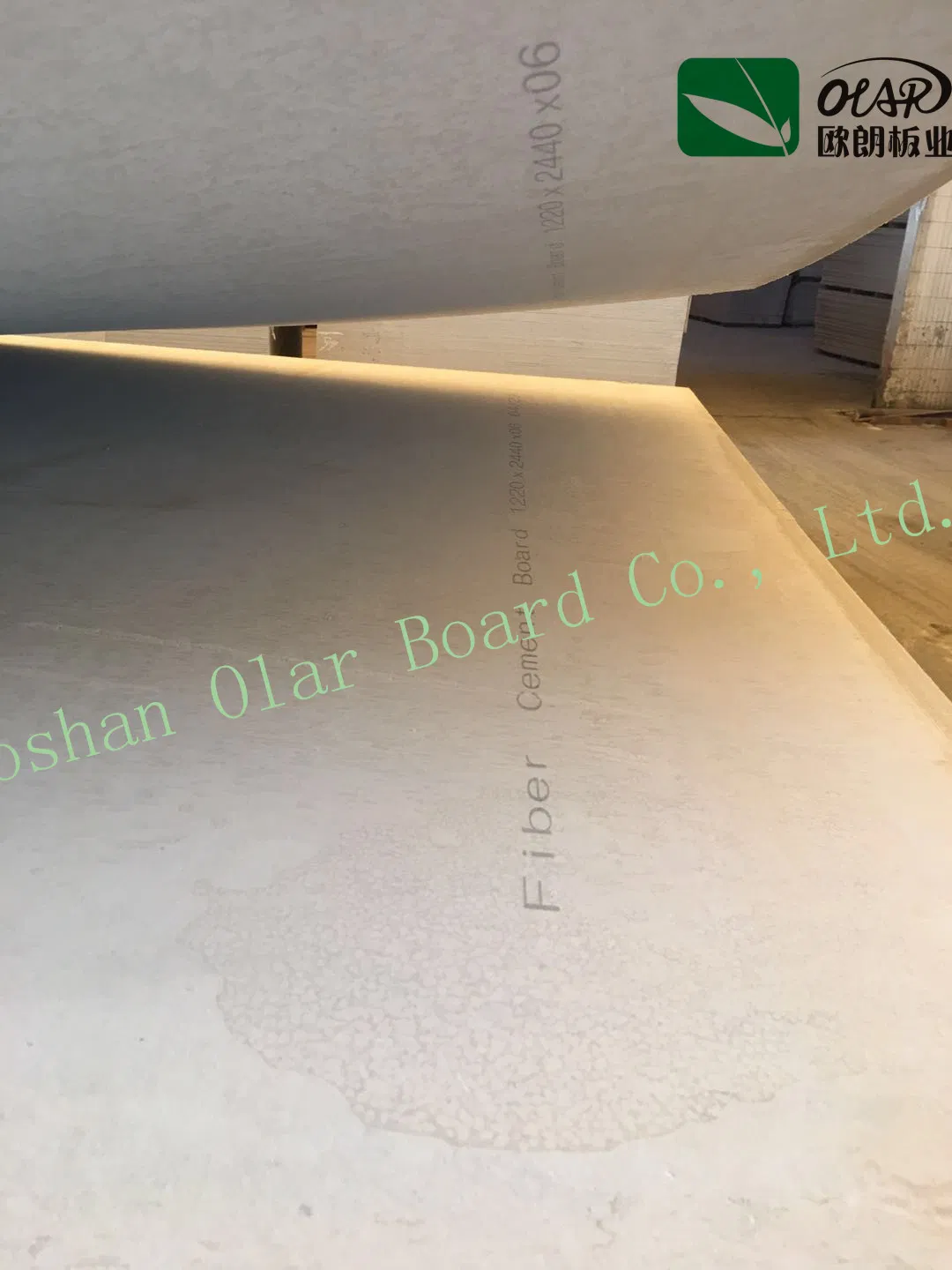

Fiber Cement Board--Medium Density Ceiling, Partition Wall Panel

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
Fiber Reinforced Fiber Cement Board
Type
Calcium Silicate Board
Shape
Square
Function
Fireproof, Soundproof, Heat Insulation, Moisture-Proof, Mould-Proof
Size
1220*2440mm
Thickness
4.5, 5, 6, 8, 9, 10, 12, 15mm or More
Density
Medium
Surface
Roller Coating / Sanded / Polished
Materials
Cement, Wood Fiber, Quartz and others
Specification
CE EN 12467:2012, In-combustible A1, ISO9001:2008
Capacity
15,000,000 Square Meters Per Year
Package Weight
3000.00kg

Global Recognition

Our high-quality products have captured a significant domestic market share and are extensively exported to European countries including Italy, Sweden, Norway, Russia, UK, Spain, and Poland. We maintain strong cooperative relationships with partners in Australia, New Zealand, South America, USA, and Canada. Reliable quality and reasonable pricing have earned us global recognition.

📋

Product Description

This Medium Density Fiber Cement Board is 100% Non-asbestos, composed of cellulose, sand, cement, mica, and other high-grade materials.

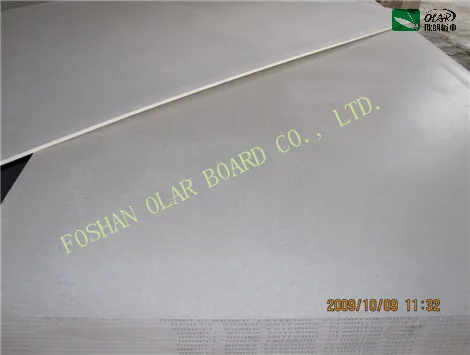

Smooth Surface Inspection
Smooth Surface Finish

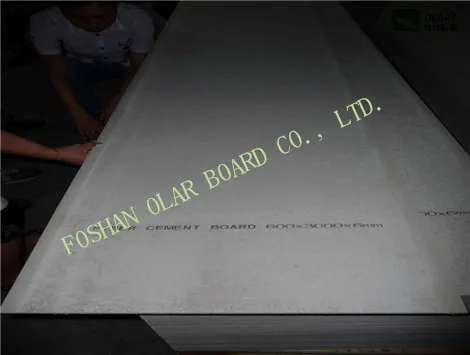

Normal Surface Inspection
Normal Surface Texture

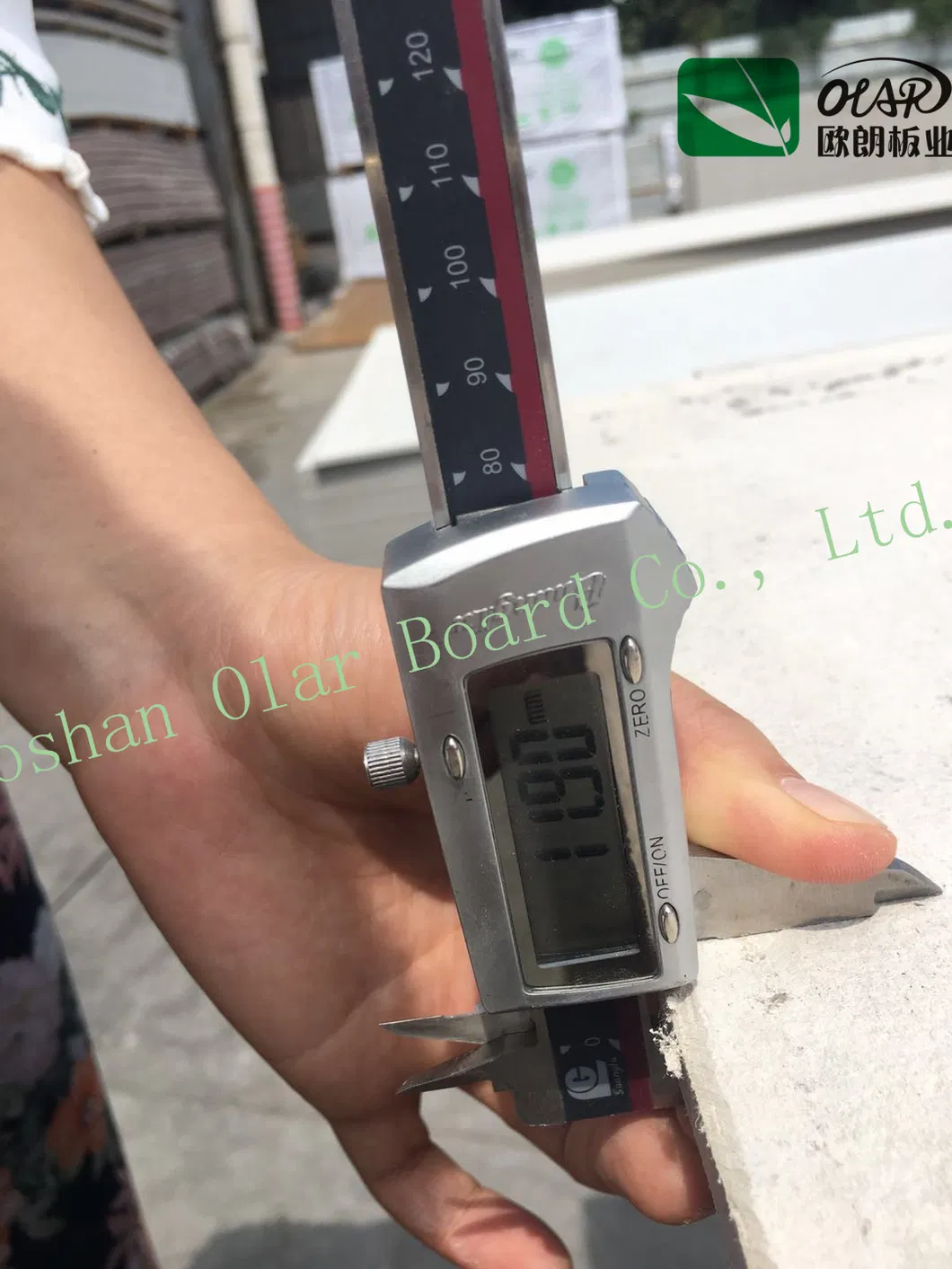

Thickness Tolerance Check
Strict Thickness Tolerance (+/-0.2mm)

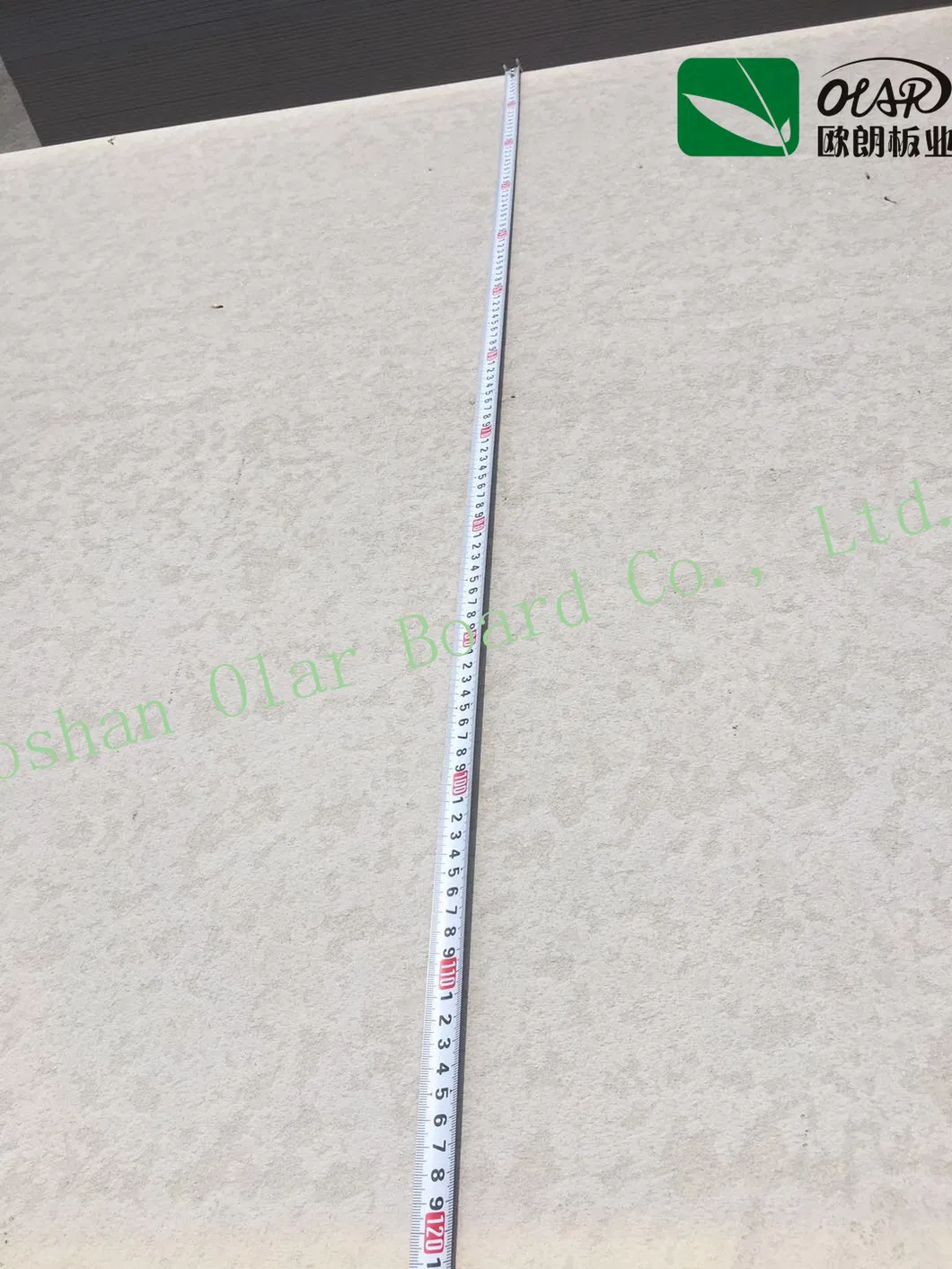

Backside View
Durable Backside Structure

Key Characteristics

  • Lightweight with medium density
  • Excellent Fireproof (Grade A1)
  • Superior Thermal insulation
  • Moisture-proof and Shockproof
  • Anti-insects and rodents
  • Easy construction and installation
  • Long lifespan (50+ years)
  • Sound insulation (up to 40dB)
🏠

Application Guide

Versatile usage across various building types including office buildings, residential areas, schools, hospitals, and commercial hubs.

Thickness Recommended Application
4.5mm - 6mm Interior Ceilings
6mm - 9mm Fire Door Core
8mm - 15mm Interior Partition Walls
15mm - 18mm Internal Floor Backer (with steel structure)

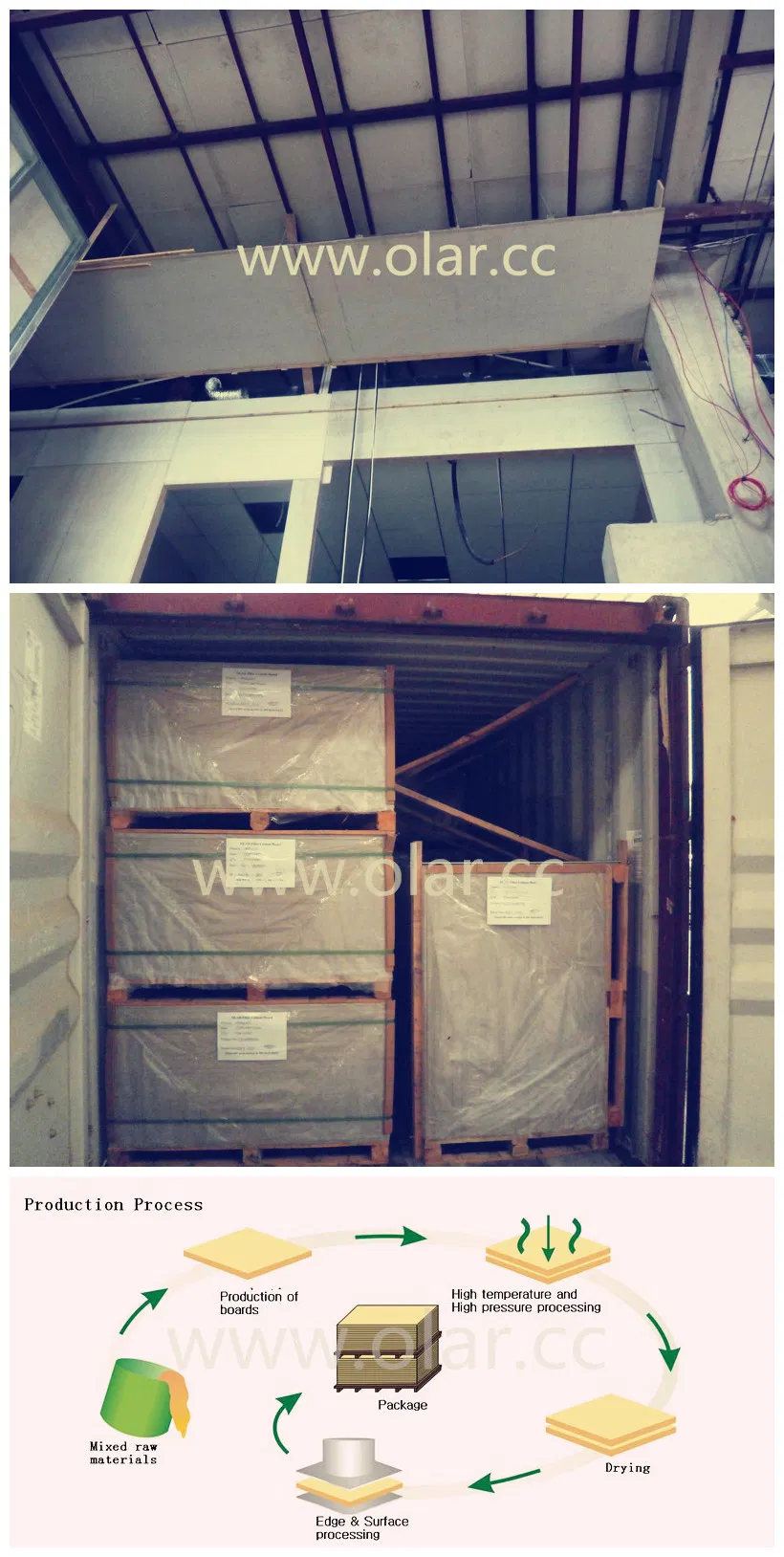

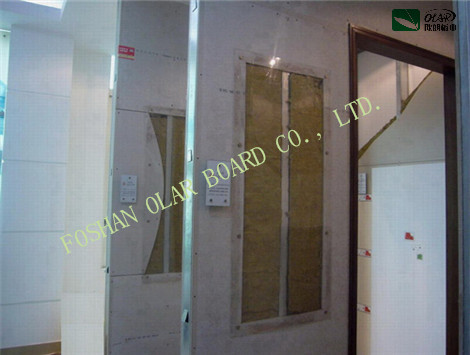

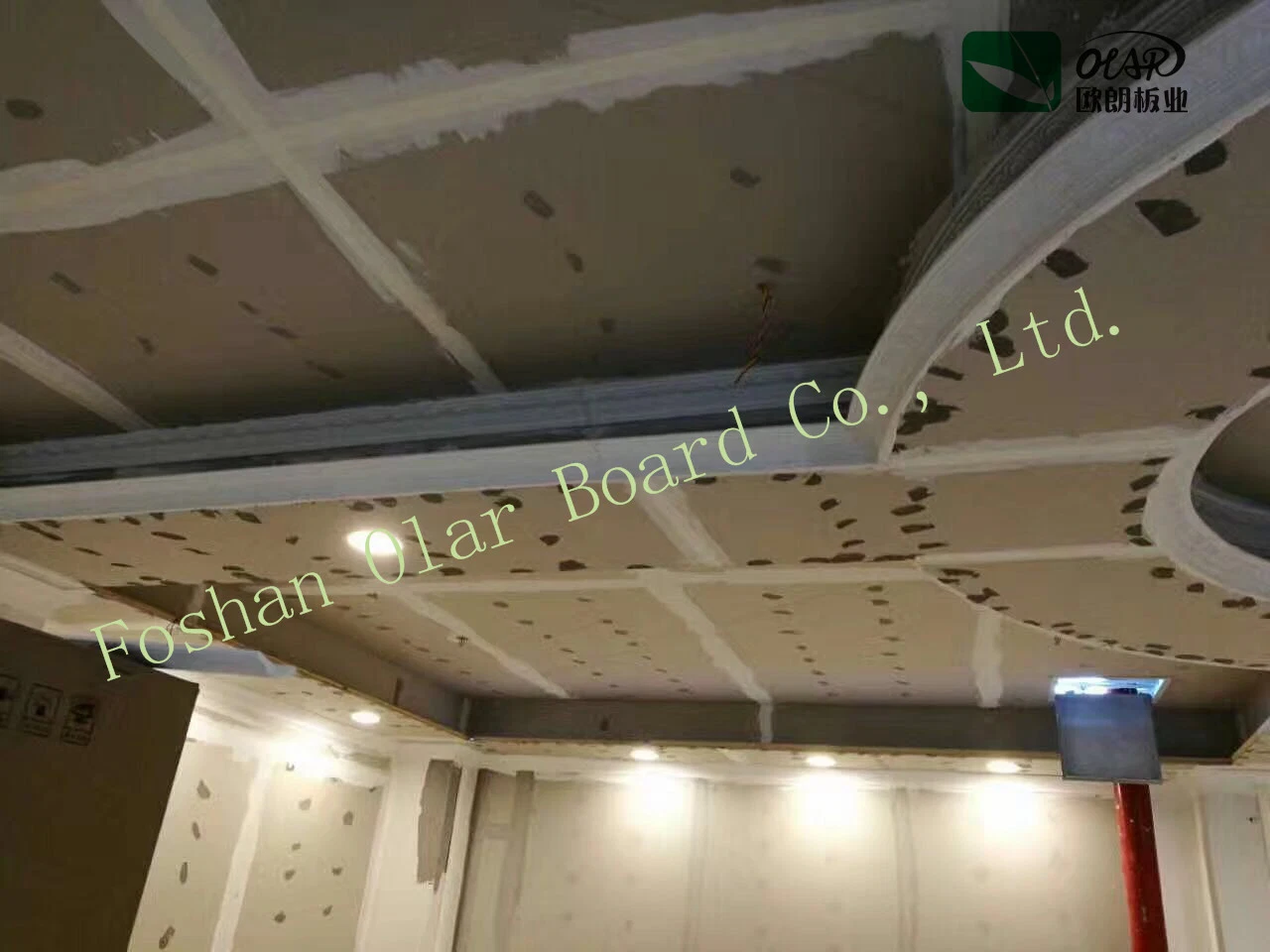

Application View

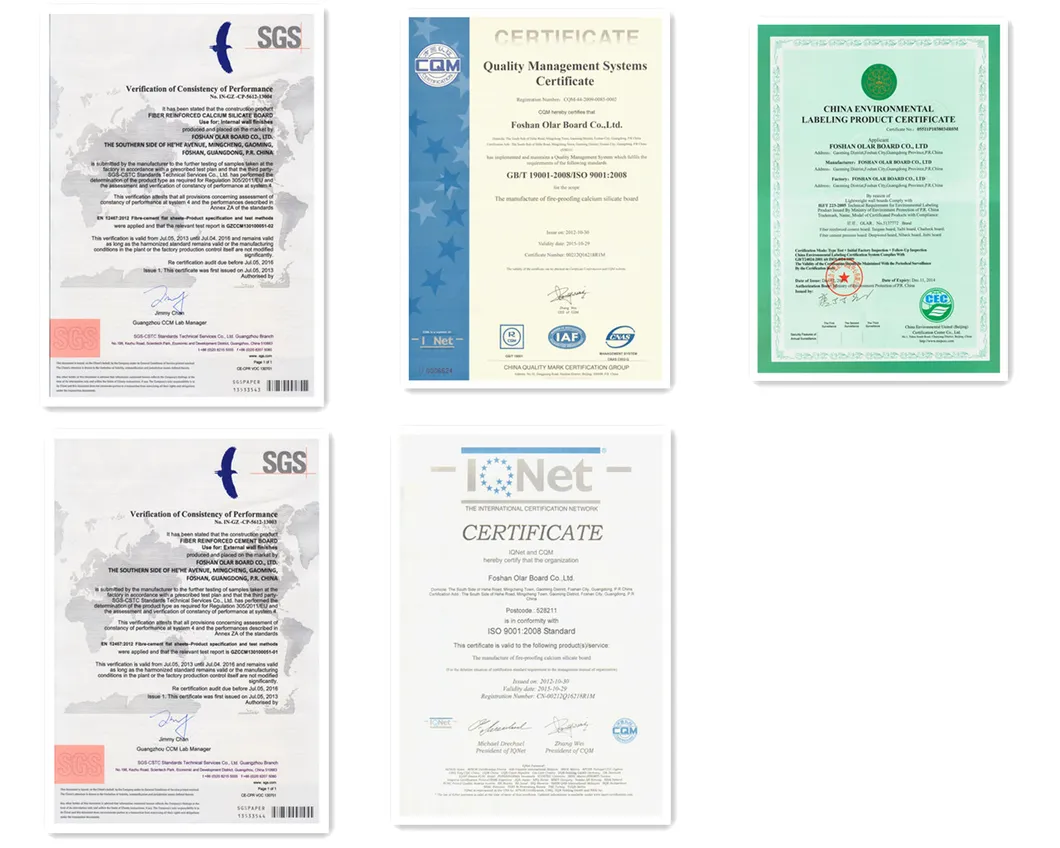

Certification

Technical Specification

Density 1000~1200KG/M³
Bending Strength (Dry) Cross: 9~11MPa; Parallel: 5~7MPa
Moisture Movement ≤ 0.25%
Water Absorption ≤ 42%
Thermal Conductivity ≤0.22w/(m*k)
Non-combustibility Grade A1 (GB 8624-2006 / BS 476-4)
Product Warranty More than 20 years
📦

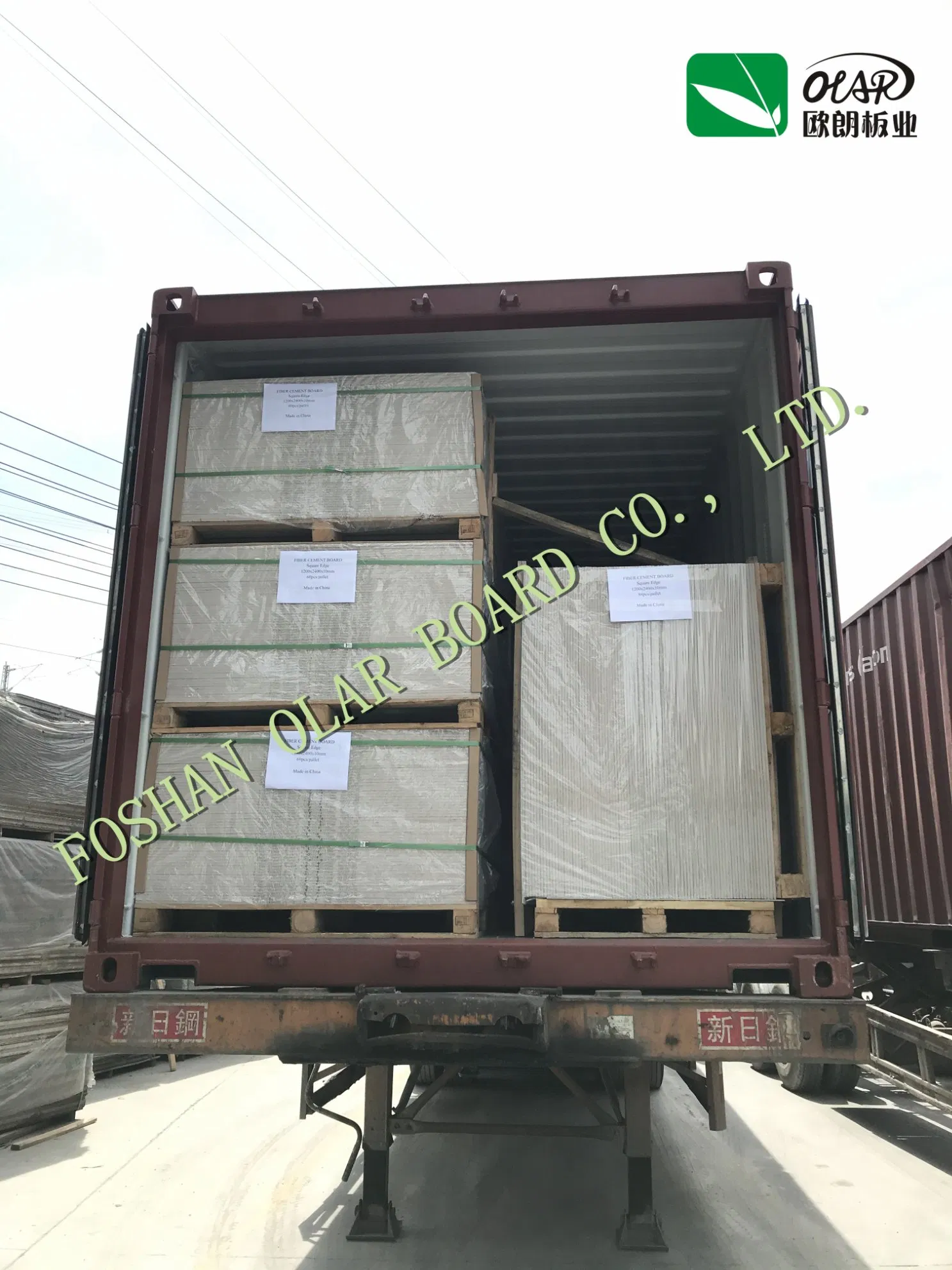

Packaging & Logistics

  • Held by wooden Pallet or without Pallet
  • Bonded with secure plastic belts
  • Fastened reinforced corners
  • Lead time: 25-30 Working days

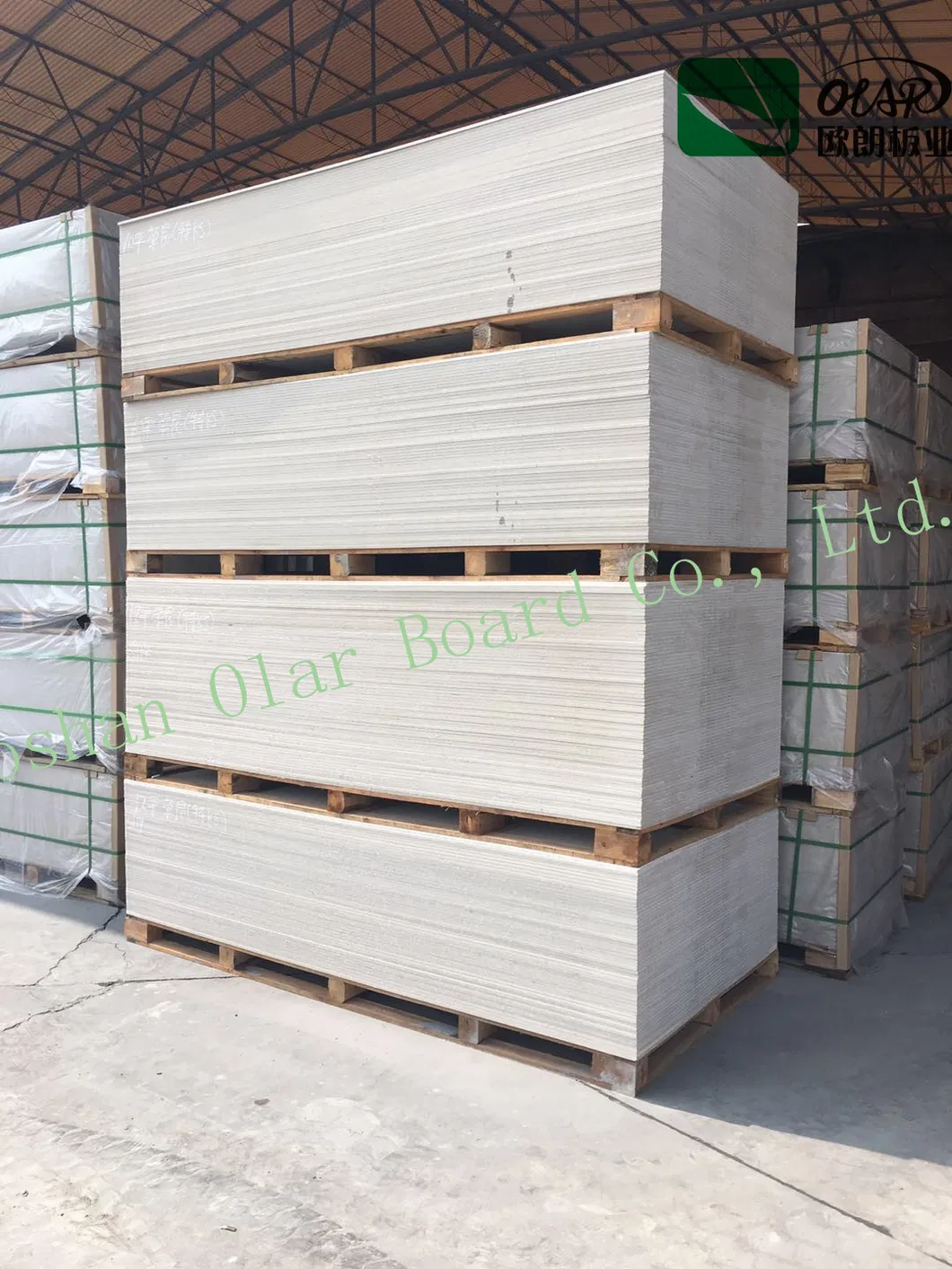

Packing 1

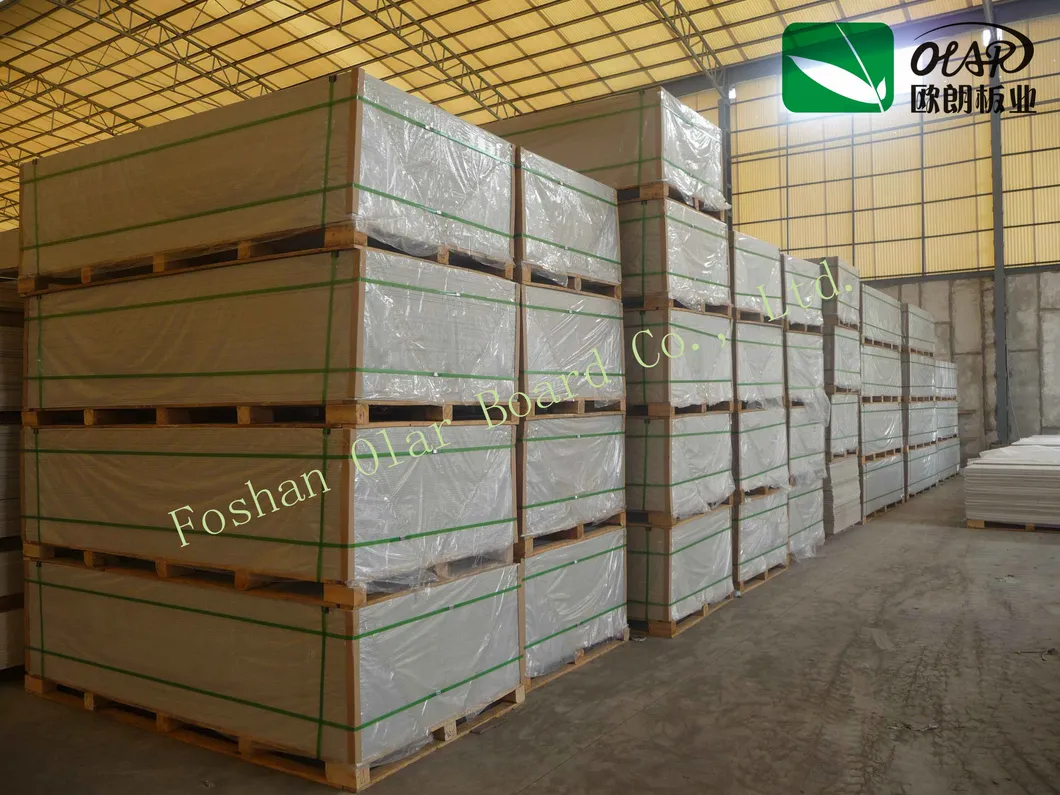

Packing 2

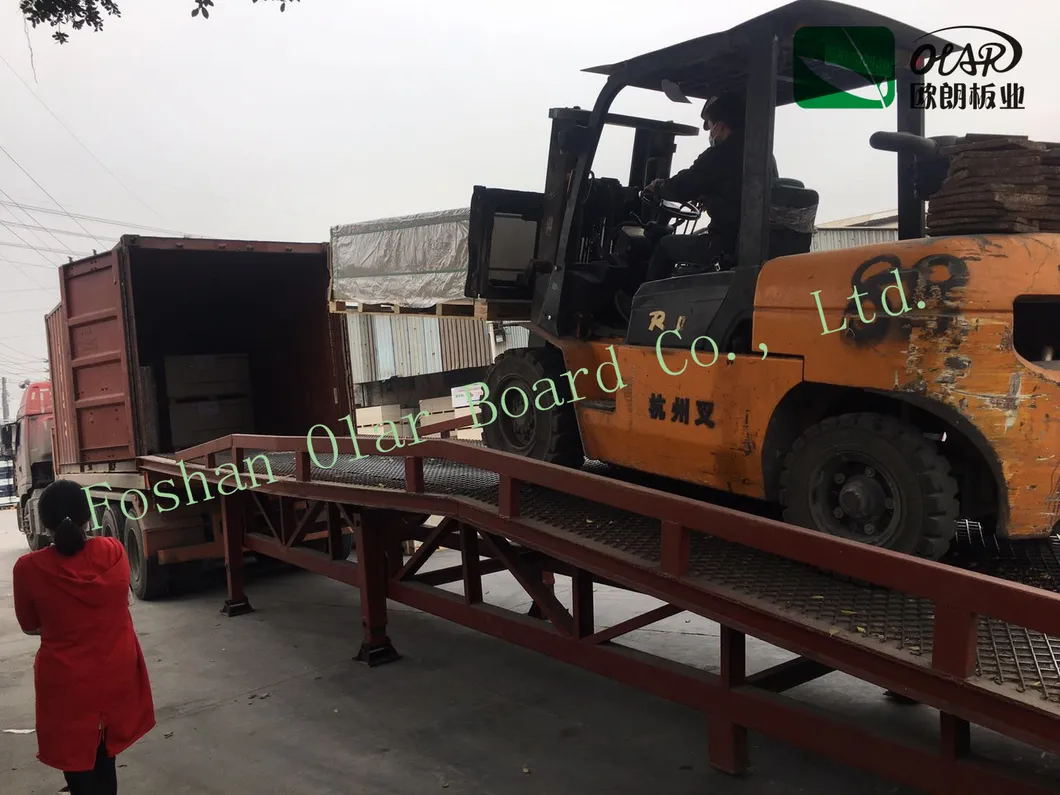

Packing 3
🏢

Project References

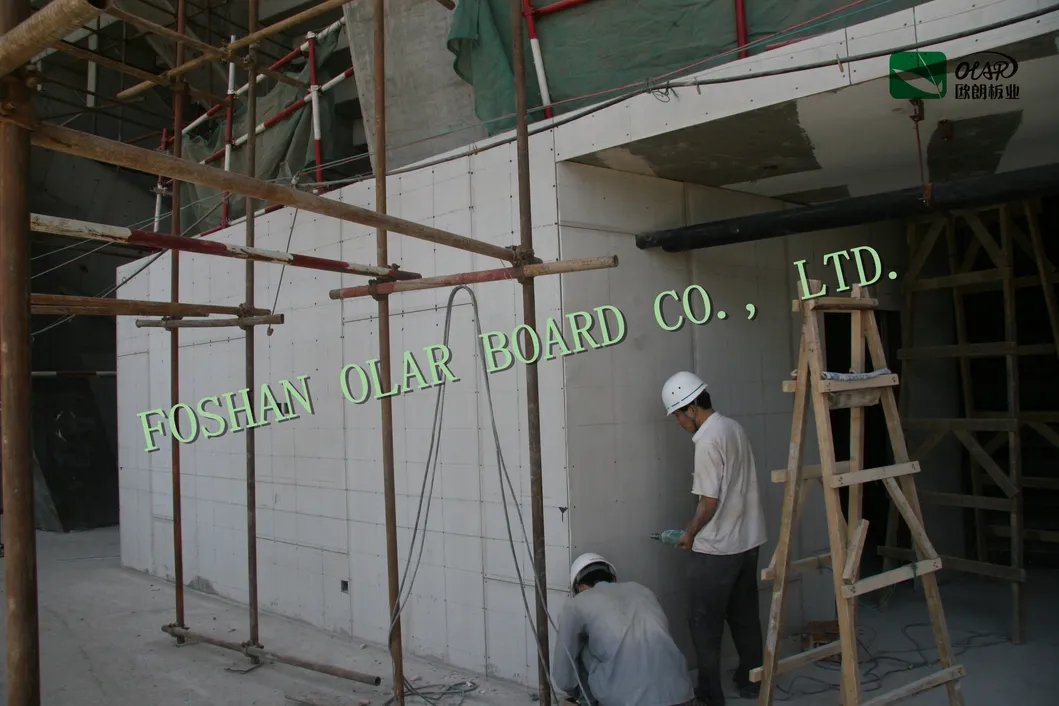

Project 1

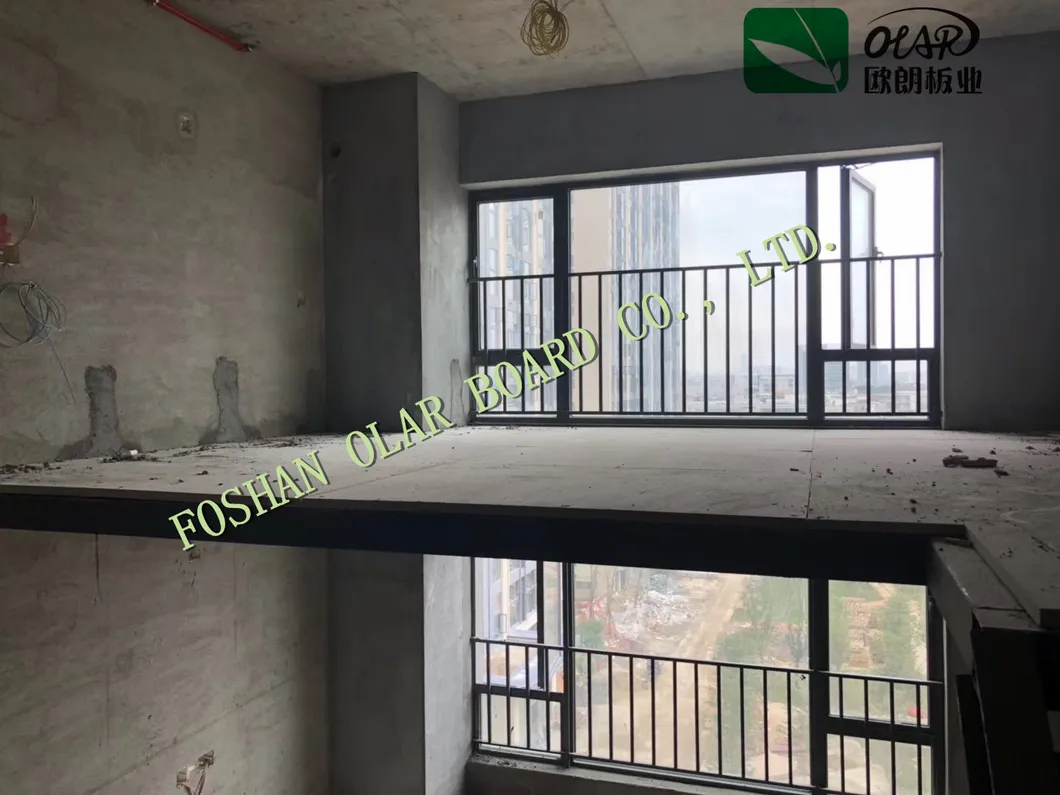

Project 2

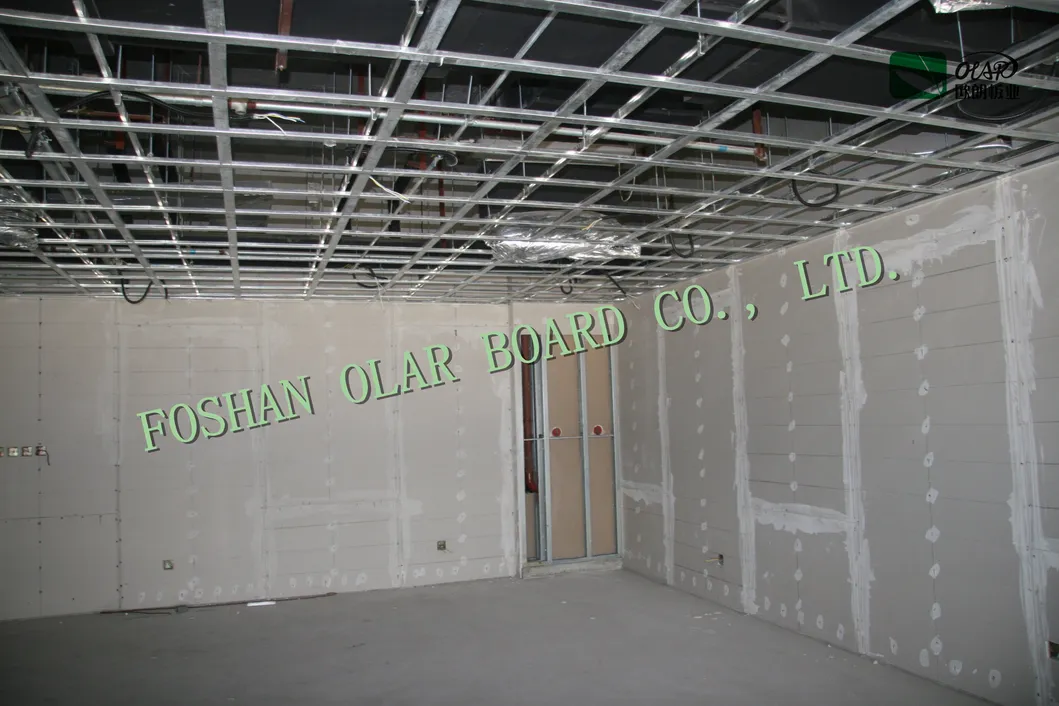

Project 3
?

Frequently Asked Questions

Q1: What is the main composition of Fiber Cement Board?
It is 100% non-asbestos and made from a high-quality blend of cement, cellulose fibers, quartz sand, mica, and other minerals.
Q2: Is the board fire-resistant?
Yes, the board reaches Non-combustibility Grade A1 (GB 8624-2006 and BS 476-4). It can withstand fire for over 1 hour without producing smoke.
Q3: Can it be used in moisture-prone areas like bathrooms?
Absolutely. The board is moisture-proof and mould-proof, making it suitable for humid environments such as kitchens, bathrooms, and laundries.
Q4: What is the estimated lifespan of the board?
When installed correctly in standard environments, the board has a long service life that can exceed 50 years.
Q5: How does the board perform regarding sound insulation?
The medium density structure provides excellent sound insulation properties, effectively blocking noise up to and over 40dB.
Q6: What are the standard dimensions and can they be customized?
The standard size is 1220*2440mm with thicknesses ranging from 4.5mm to 15mm. Custom specifications are available depending on order quantity.
