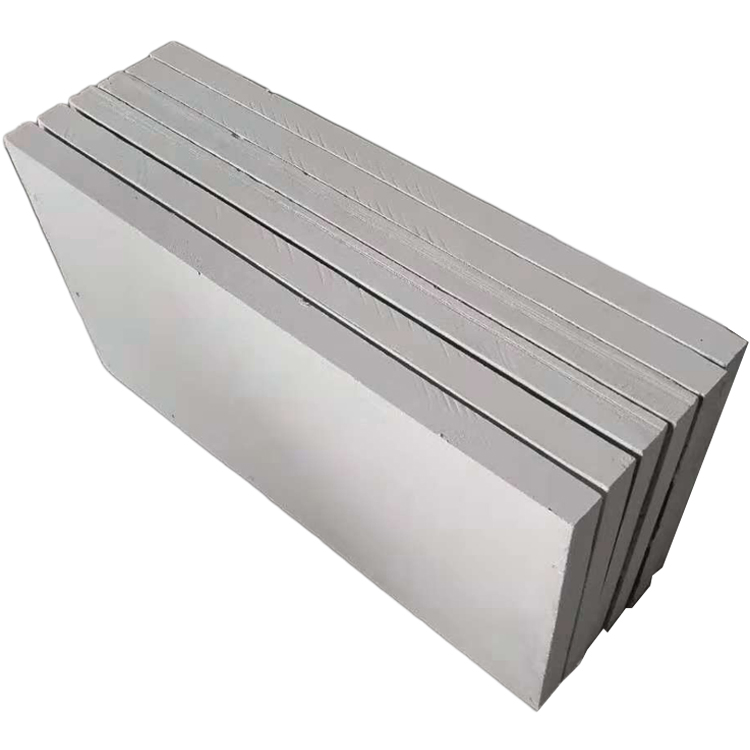

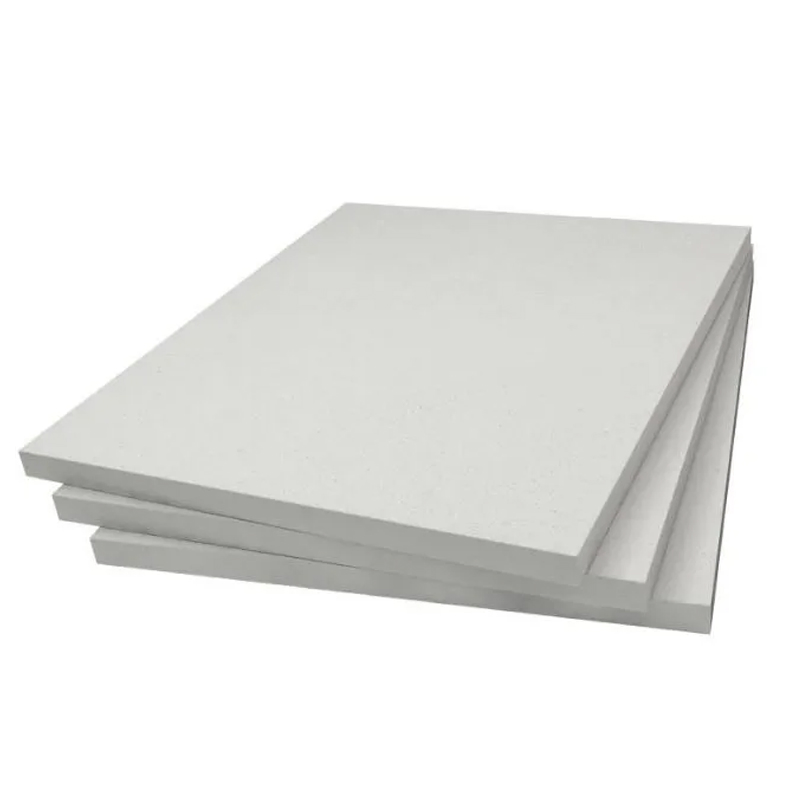

Fire Rated Fiber Cement Plate Non-Asbestos Reinforced Thermal Insulation Heat Resistant Panel Light Weight Waterproof Fireproof Calcium Silicate Board

📋 Basic Information

Model NO.

LAUREL-S-01

Shape

Board

Type

Heat-Resistant Material

Item

Calcium Silicate Board

Temperature

650℃-1100℃

Density

220-1000 Kg/M3

Materials

Calcium Silicate

Flexural Strength

0.5-7.0 MPa

Compressive Strength

1-10 MPa

Performance

Excellent

Linear Shrinkage

≤ 2

🔍 Product Description

Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperatures up to 1000 ºC. It is lightweight, has low thermal conductivity and high strength, and is easy to install. Calcium silicate boards are commonly used as furnace backup insulation in the steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction. It saves energy, increases production efficiency, and protects personnel in industrial safety.

Thickness: 10-140 mm or customized
Length: 400/600/610/1000/1200 mm or customized
Width: 250/300/500/600 mm or customized
Durability: High Strength & Good Durability
Function: Refractory & Insulation & Fireproof

📊 Product Parameters

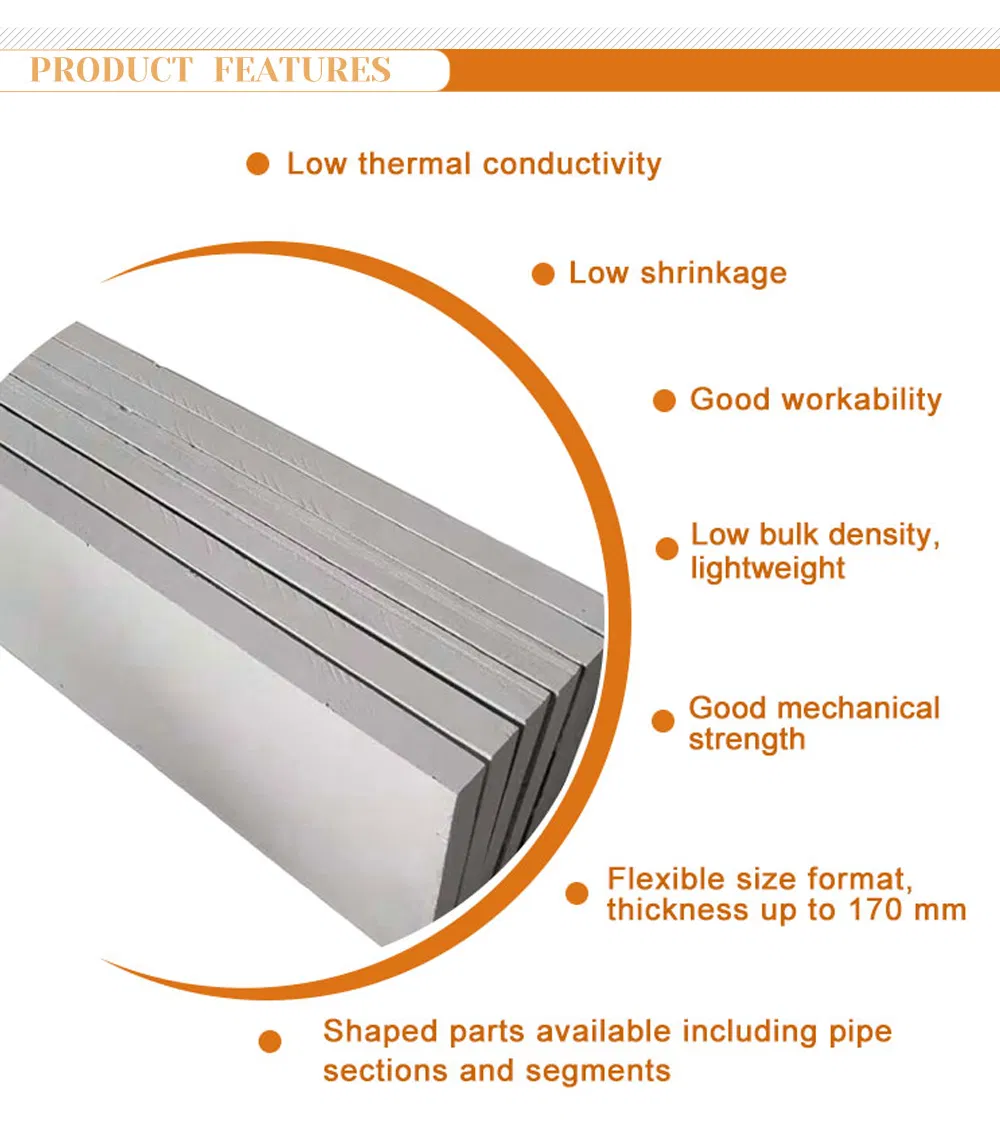

Light bulk weight
Low thermal conductivity
High compressive strength
Non-toxic, easy to cut and install

Item	Calcium silicate board
Chemical Composition	SiO2≥55; CaO≥36; Al2O3≤0.5; Fe2O3≤1.0
Bulk Density (Kg/m3)	250(±10%)	270(±10%)	300(±10%)
Flexural Strength (Mpa)	≥0.55	≥1.0	≥1.2
Max service temperature	1000 ºC	1000 ºC	1000 ºC
Compressive Strength (Mpa)	≥1.0	≥1.5	≥2.0

🏭 Application Industries

Calcium silicate boards are widely utilized across various high-temperature industries including:

Cement kilns and industrial coke ovens
Glass furnace equipment
Electrical and Metallurgical equipment
Petrochemical industry
Other heating furnace thermal insulation

🌍 Global Services

With over 20 years of expertise, professional research and development are conducted for all types of refractory and insulation materials. Materials have been exported to over 50 countries across Europe, South America, North America, Africa, Oceania, and Southeast Asia.

❓ Frequently Asked Questions

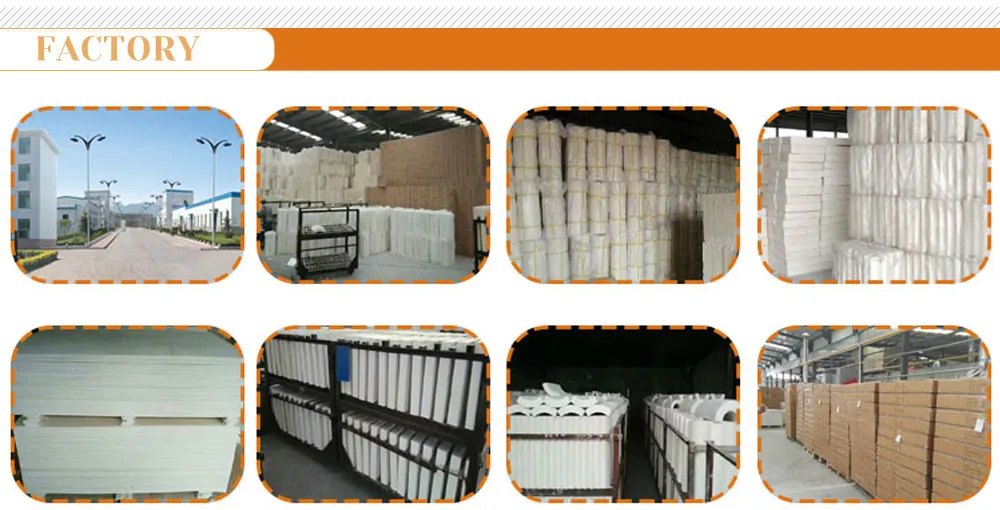

Q1. Are you a Manufacturer? Yes, our factory is located in the industrial zone. We also maintain strong cooperating relationships with other manufacturers for related specialized products.

Q2. Can you accept OEM or ODM? Yes, OEM and ODM are welcome. Customization is also available based on specific project requirements.

Q3. What's the MOQ of the trial order? There is no strict limit. We can offer the best suggestions and solutions to meet your specific requirements.

Q4. How long is the delivery time? Normally, it takes around 10-20 days, depending on the order size and specific quantity requirements.

Q5. How can you control your quality? For each production processing, we have a complete QC system to control the quality throughout the entire manufacturing cycle.

Q6. Do you provide free samples? Yes, free samples are available for testing and quality verification.
