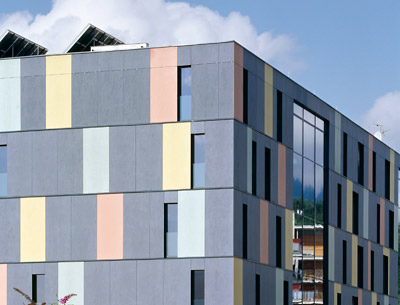

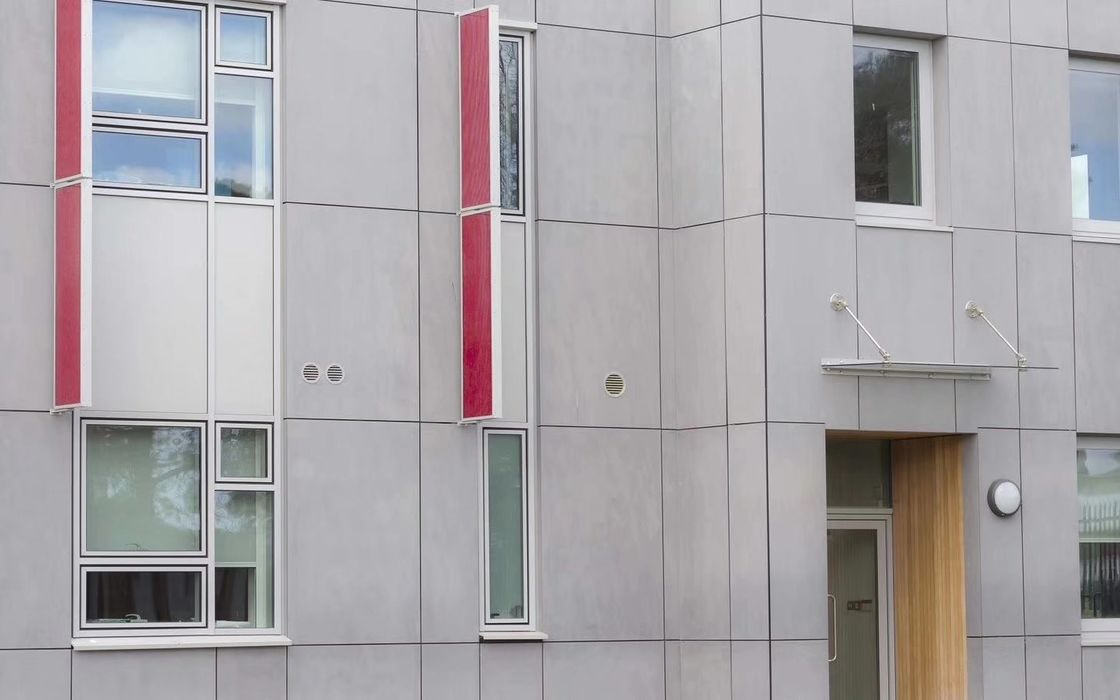

Non-Asbestos Cement Fiber Board Exterior Wall Panel Fiber Cement Boards Prices for Partition Wall Cladding

Still deciding? Get samples of $ !
Request Sample

Product Description

ℹ️

Basic Info.

Model NO.
Cement board
Color
Gray
Thickness
4.5-30mm
Raw Material
Cellulose Fiber; Cement, Quartz Powder, Wood Pulp
Asbestos
100% Non-Asbestos
Fire Rating
Class A
Size
1220*2440
Application
Wall Partition, Exterior Wall Cladding, Flooring
Density
1.2-1.6g/cm3
Design Style
Traditional, Modern
Water Contain
<10%
Bending Strength
>10 MPa
HS Code
68118200
Capacity
600,000 SQM Per Month
📄

Product Description

Fiber Cement Board
Thickness (mm) Width (mm) Length (mm)
5-30 1220 2440, 3000
Dimensional Deviation
Thickness ≤8mm ±0.3mm
8-12mm ±0.5mm
≥12mm ±0.8mm
Width ≤1220mm ±3mm
Length ≤2400mm ±5mm

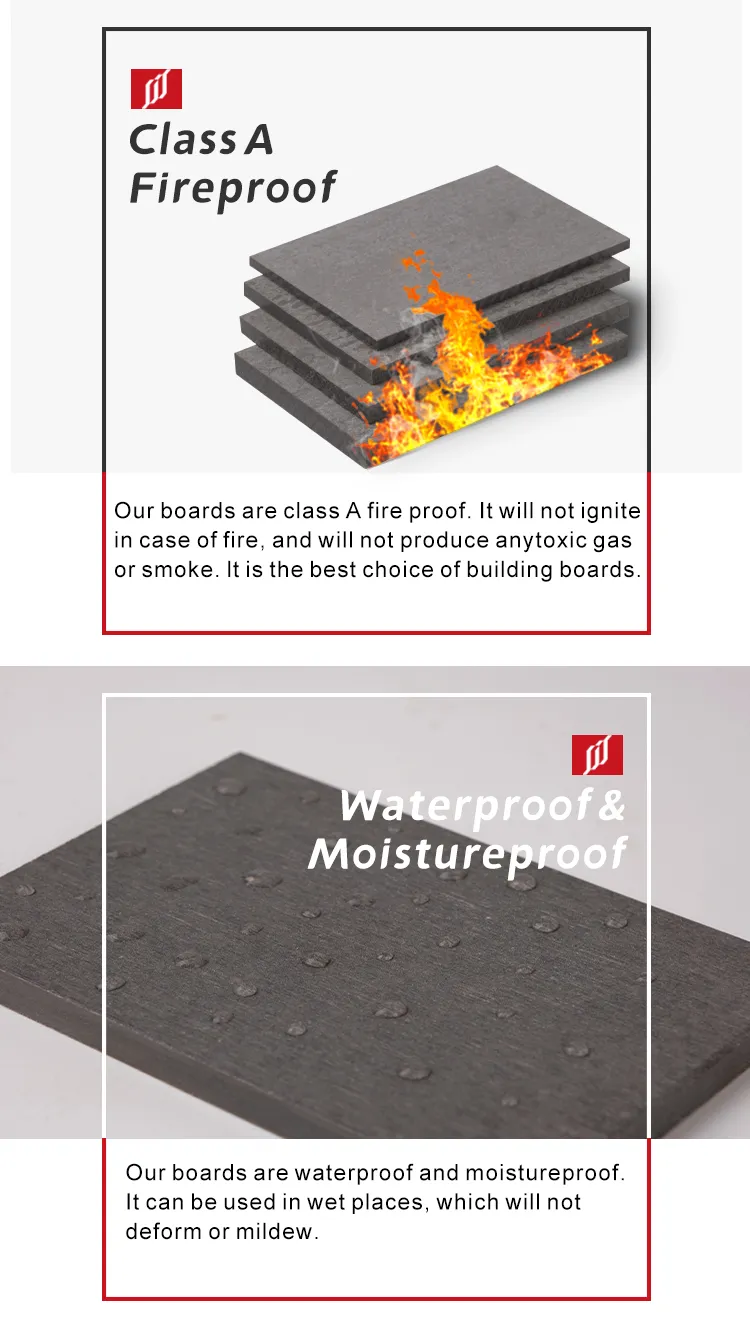

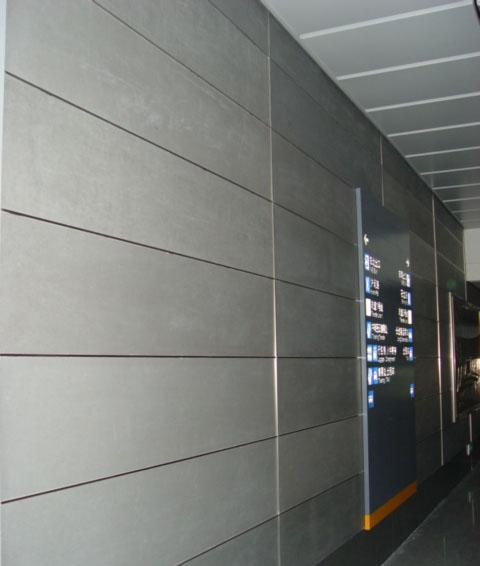

Fiber Cement Panel
Wall Cladding Board
🛠️

Product Installation

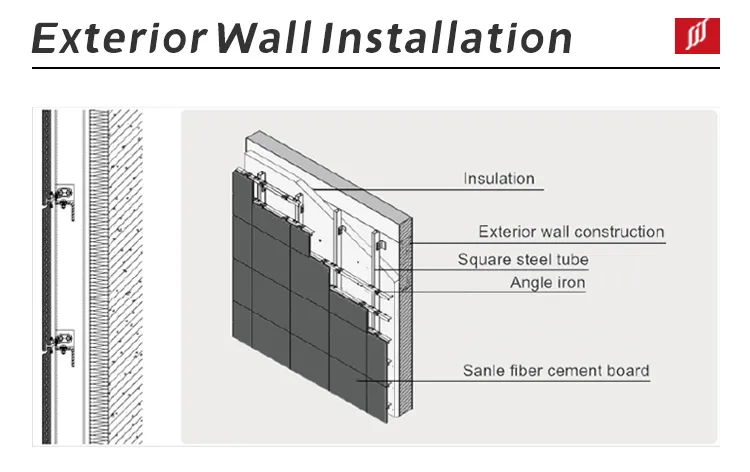

1. Exterior Wall Installation

Exterior Wall Installation
  • Fiber cement board preparation: Fix supporting aluminum accessories on the back of the board.
  • Construction wall preparation: Clean surface and mark position lines.
  • Wire hanging: Use steel wires for vertical control.
  • Keel installation: Fix angle iron and vertical square steel tubes; ensure perpendicularity.
  • Board installation: Mount processed boards on keels using aluminum accessories and tighten screws.
  • Joint treatment: Fill seams with mixing glue and paint with special coating.

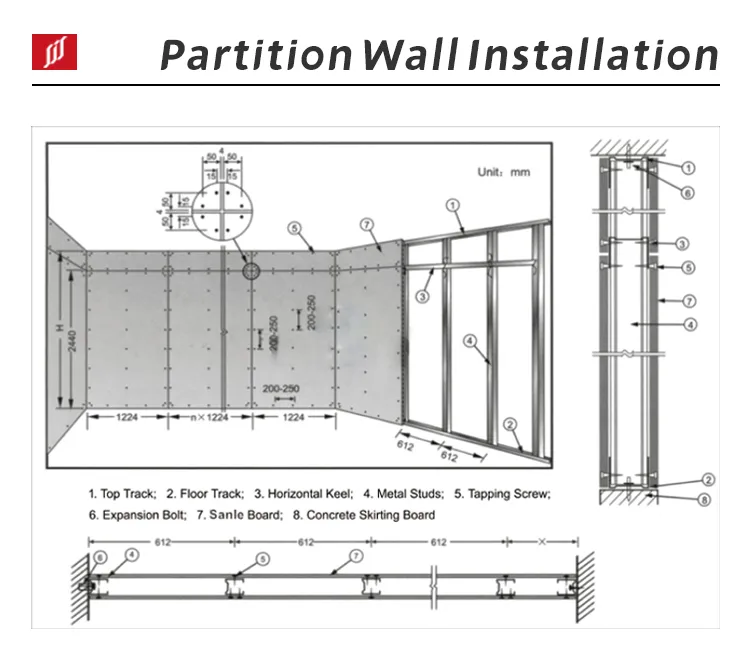

2. Partition Wall Installation

Partition Wall Installation
  • Fix top and bottom keels with expansion bolts.
  • Align vertical keels (generally 612mm spacing).
  • Cut boards to dimensions (10mm lower than wall height).
  • Fix boards on keels with tapping screws (200-250mm interval).
  • Keep a 4mm expansion seam between boards.

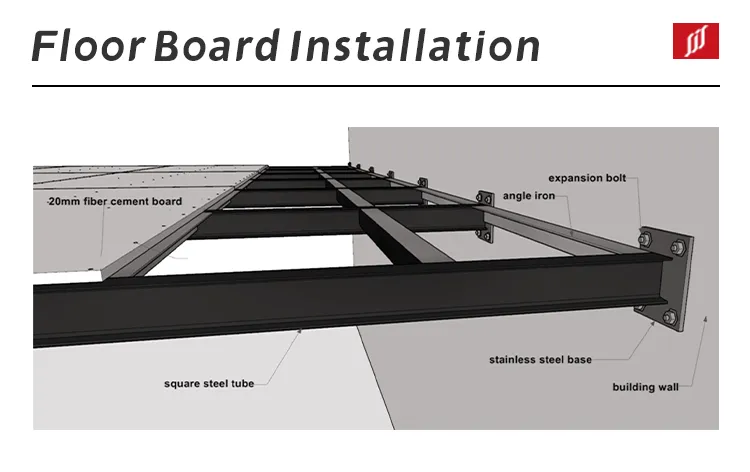

3. Floor Board Installation

Floor Board Installation
  • Polishing welding seams flat before laying boards.
  • Longitudinal direction should be parallel to the main beam.
  • Leave a 3-5mm gap between boards; joints must be on the beam center.
  • Use M5*45mm countersunk head tapping screws.
  • Nailing starts from center outwards, 20mm from board edge.

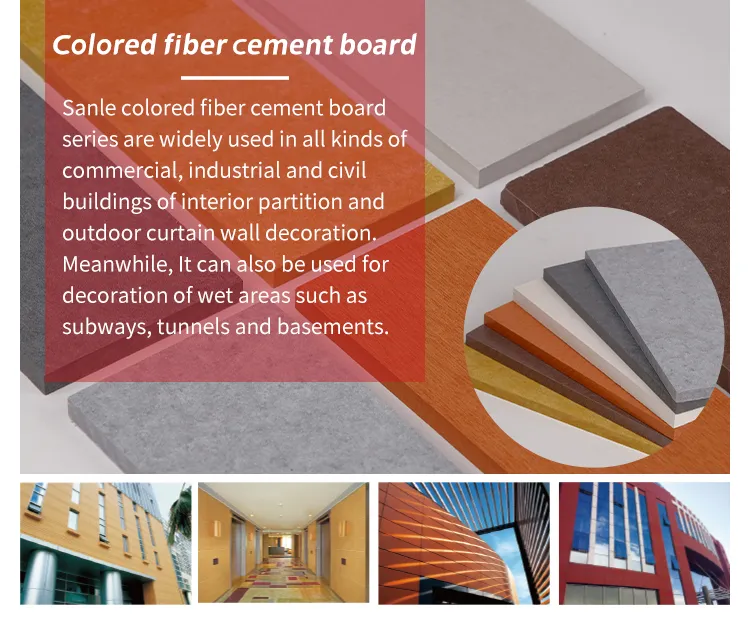

Installation Detail 1

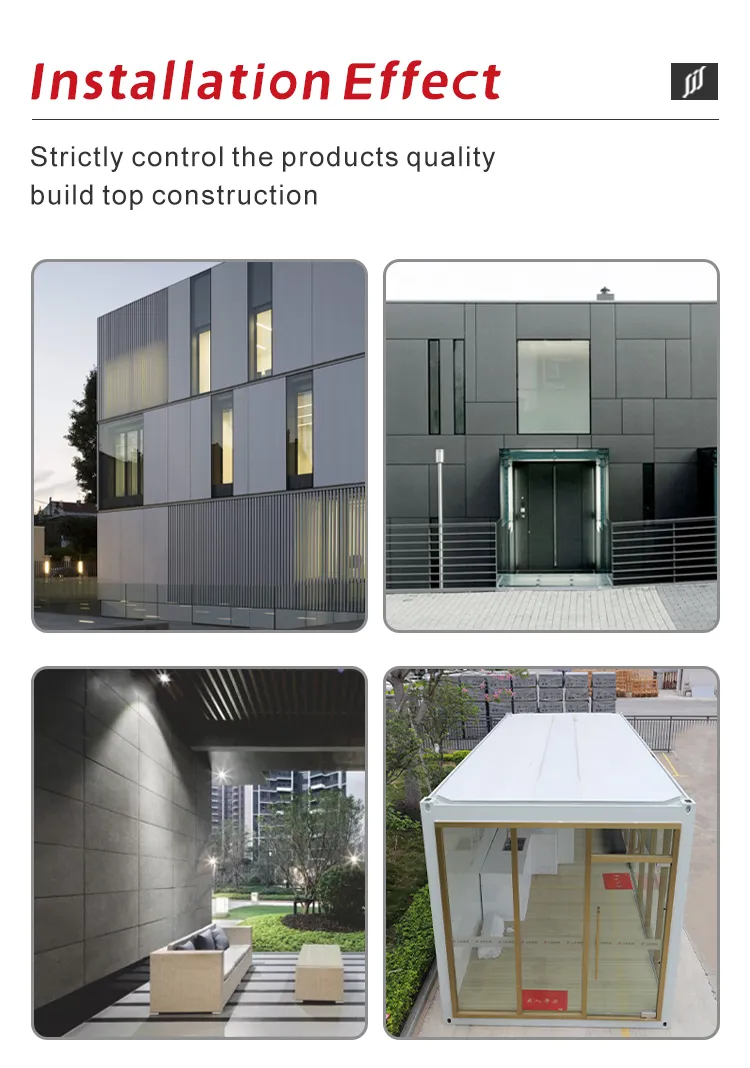

Installation Detail 2
🏗️

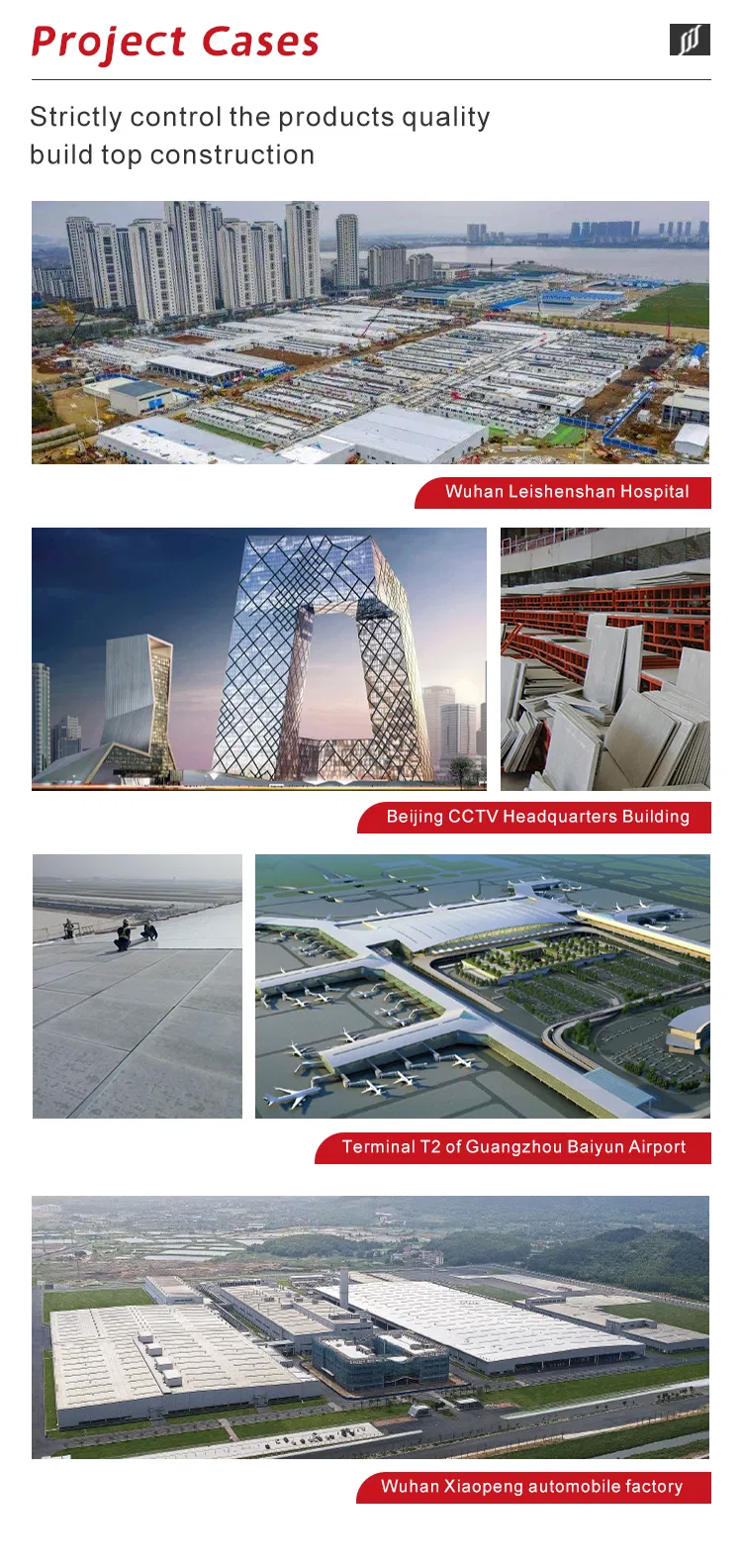

Engineering Case

Engineering Case
📦

Packaging & Shipping

Packaging
Shipping
🏬

Main Products

Plywood, MDF board, Particle board, Chip board, Gypsum board, Fiber cement siding board, Non-asbestos cement board, Calcium Silicate Board.

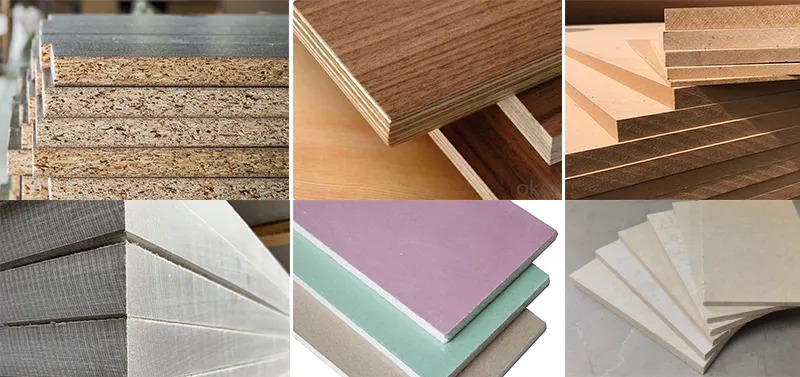

Product Range 1
Product Range 2
Product Range 3

Frequently Asked Questions

What are your terms of packing?
Generally, we pack our goods in bundles or wood pallets. We can also provide custom packaging according to customer requests.
What are your terms of payment?
We accept 30% T/T in advance and 70% during the period of shipment, or L/C at sight.
What are your terms of delivery?
Our delivery terms include EXW, FOB, CFR, and CIF.
How about your delivery time?
For stock items, goods can be sent to the loading port within 15 days of receiving the deposit. For production, it usually takes about 20-25 days.
Can you produce according to samples?
Yes, we can produce by your samples or technical drawings. We can also build the necessary molds and fixtures.
Do you provide samples for free?
We provide samples free of charge, but the customer is responsible for the shipping costs.
