Product Description

Basic Specifications

Model NO.

zb111

Aluminum Thickness

0.5mm

Function

Fireproofing, Anti-static, Anti-Bacterial, Mould-proof

Usage

External Wall, Curtain Wall, Interior, Advertising

Certification

CE, ASTM, ISO, Green Leaf

Core

LDPE

Package Size

1.00cm * 1.00cm * 1.00cm

Specification

4*0.5*1220*2440

Origin

China

HS Code

76061251

Production Capacity

50000/Month

Gross Weight

1.000kg

Product Overview

A2 core composite panels consist of two coated aluminium sheets laminated to both sides of a non-combustible core. Designed to meet the stringent fire-reaction requirements of the European fire certification EN 13501-1, class A2, these panels offer unlimited creative freedom for high-end architectural transformations and industrial applications.

Colors & Surfaces

The decorative layer is coated with a high-performance PVDF system (formulated with KANAR 500 or HYLAR 5000 70% PVDF resin) to ensure excellent exterior durability. Continuous process coil coating ensures color and gloss uniformity superior to other market processes.

Technical Product Ranges

Feature	PVDF Marble Coating	Polyester Marble Coating
Aluminum Alloy	AA1100 series	AA1100 series
Aluminum Skin	0.25mm - 0.50mm	0.08mm - 0.50mm
Panel Thickness	3mm, 4mm, 5mm, 6mm	3mm - 12mm
Panel Width	1220mm, 1250mm, 1500mm	1220mm, 1250mm, 1500mm
Panel Length	2440mm, 3050mm, 5000mm	2440mm, 3050mm, 5000mm
Glossy Level	20% - 40%	40% - 70%

Dimensional Tolerances: Width: ±2mm | Length: ±3mm | Thickness: ±0.2mm | Diagonal: ≤5mm | Sheet Thickness: ±0.01mm

Performance & Applications

Key Properties

Economy & Cost-effective
High resistance to peeling
Superior weather resistance
Lightweight and easy processing
Excellent fire resistance (A2 Class)
Diversified colors and maintenance-free

Main Applications

Wall curtains, Cladding, and Facades
Interior decoration and furniture
Exterior renovation for heritage buildings
Subway and airport infrastructure
Industrial plants and specialized materials
Vehicle and boat interior components

Global Fire-Resistance Standards

Degree	China (GB/T8627)	Germany (DIN 4102)	U.S.A (ASTM E84)	U.K (BS 476)	France (NFF 16-101)
Non-Combustible	A	A1, A2	NC	0	M0
Hard-Combustion	B1	B1	A	1	M1, M2
Normal Combustion	B2	B2	B, C	2, 3	M3

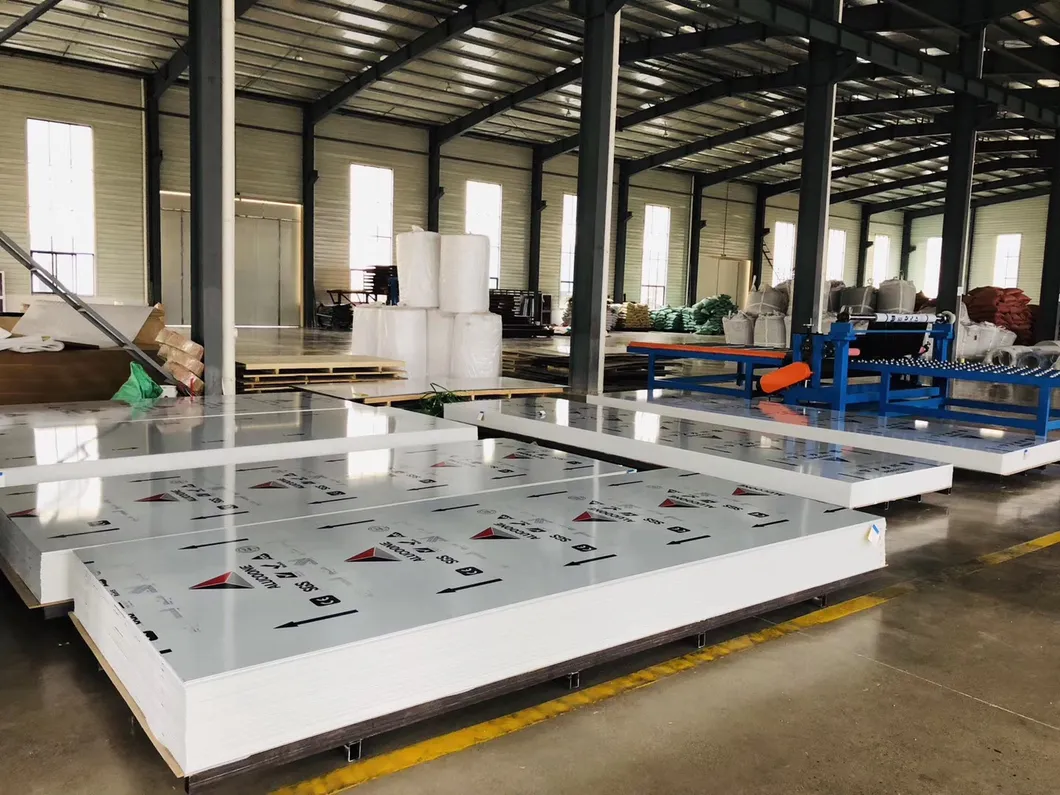

Product Gallery

Advanced Coating Systems

PE (Polyester) Coating

UV-resistant coating with alkyd monomer. Offers 8-10 years of weather resistance warranty. Ideal for internal decoration and signboards due to its smooth lustre.

Special Finishes

Brushed Panel: Natural aluminum appearance, modern and elegant.
Wooden & Stone: Processed via film-sticking or roller coating for realistic textures with superior weather resistance.
Mirror Finish: Anodic oxidation finishing for a reflective surface, primarily for indoor use.

Frequently Asked Questions

Q: What is the fire rating of the A2 core composite panel? A: It meets the European fire certification EN 13501-1, Class A2, which is a non-combustible standard.

Q: Can these panels be used for external cladding? A: Yes, they are highly suitable for external walls, curtain walls, and facades due to their superior weather resistance and PVDF coating.

Q: What is the standard thickness of the aluminum skin? A: The aluminum skin thickness typically ranges from 0.08mm to 0.50mm depending on the application and coating type.

Q: How long is the warranty for PE coated panels? A: PE (Polyester) coated panels typically come with a weather resistance warranty of 8-10 years for internal use.

Q: Are custom colors like wood or stone patterns available? A: Yes, we offer special finishes including wood, stone, brushed, and mirror finishes through film-sticking or roller coating technologies.
